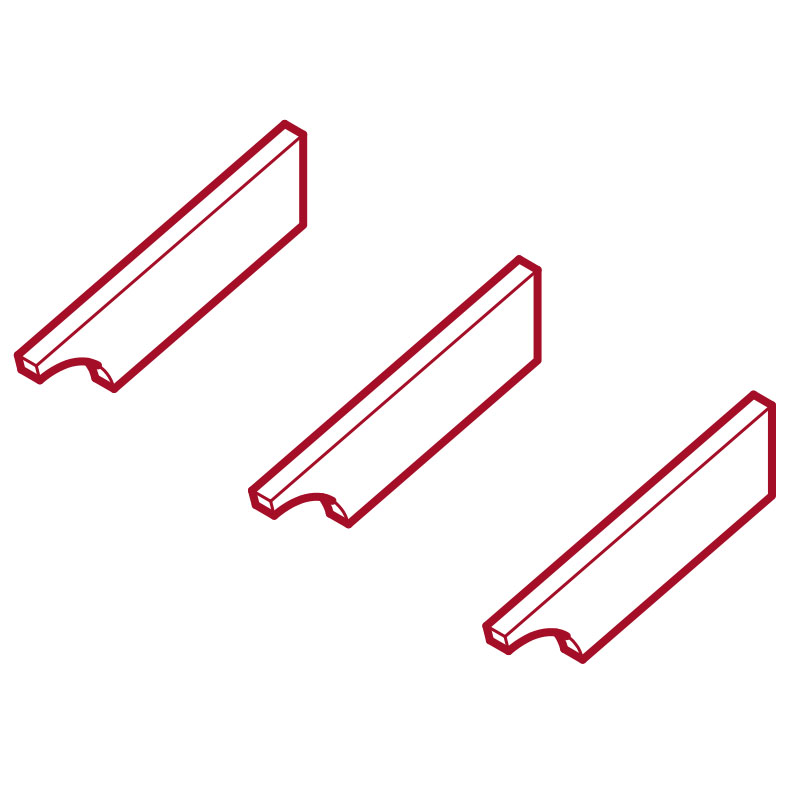

Wood Rafter Tail – Parametric Revit Family

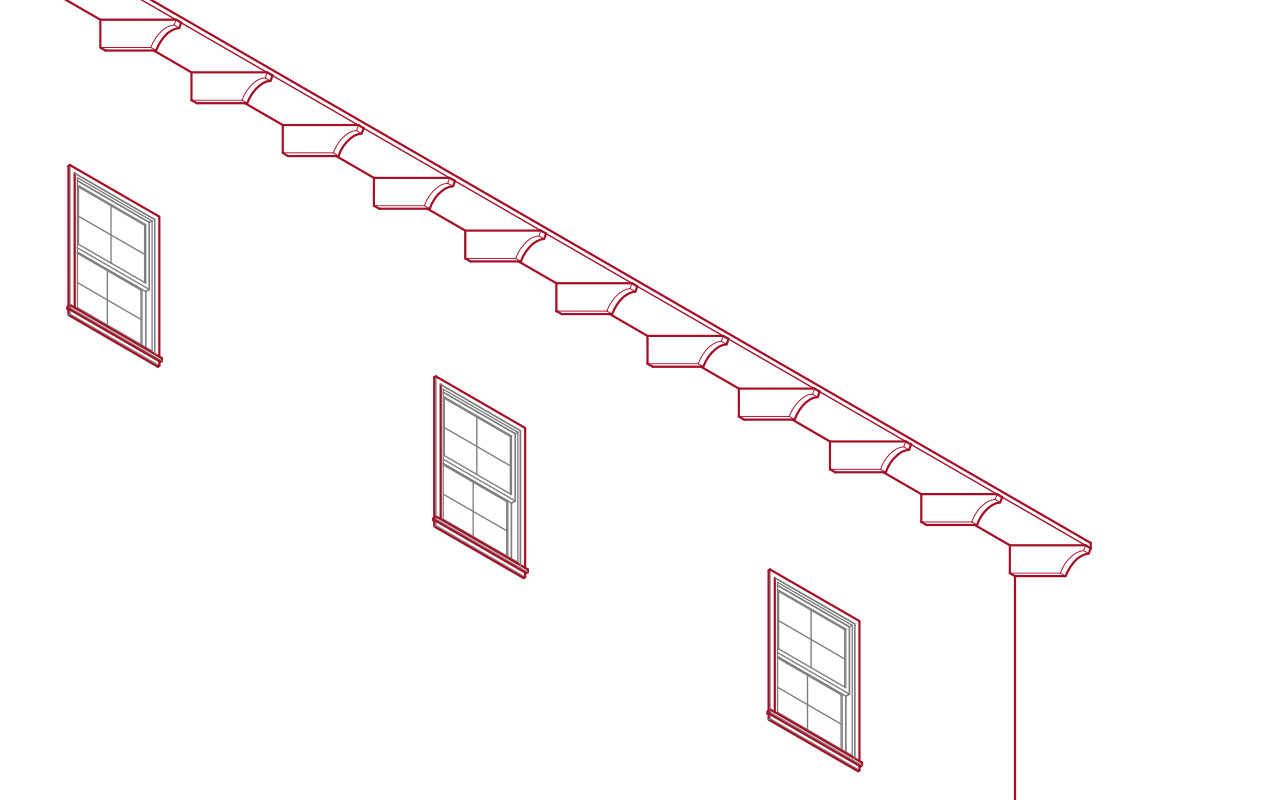

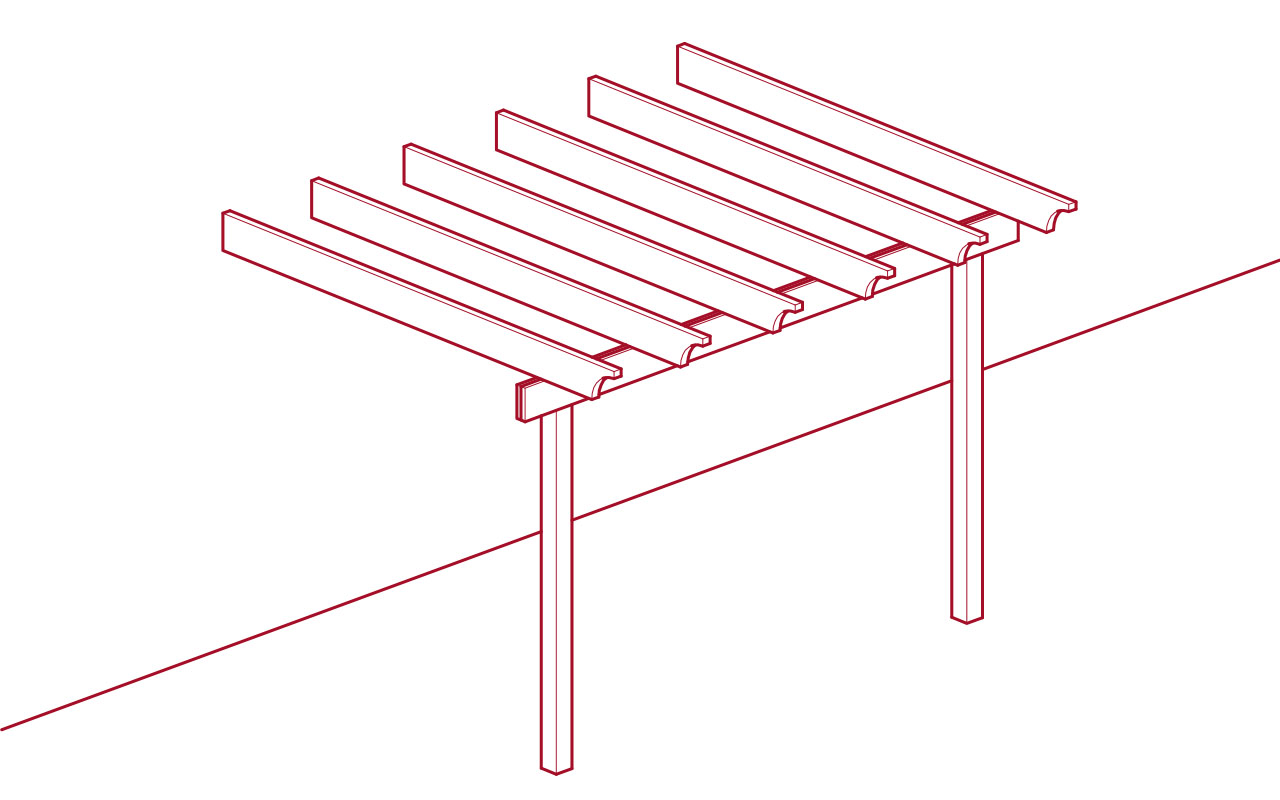

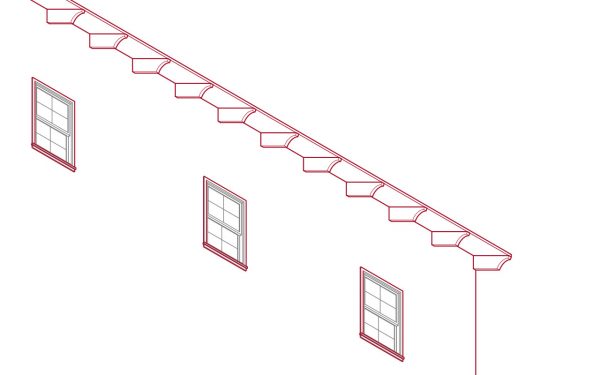

This single Wood Rafter Tail Revit Family can create all the different versions you will need for your next project. Create from Exposed Roof Rafters, Decorative Pergolas, Rafter Joists, and many more. Family parameters include Individual Rafter size control, Roof Slope define, Distance between each rafter, Swap between different rafter styles, etc. Check the below video to see family in action:

See additional information section for more details.

Family Features:

• 100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.

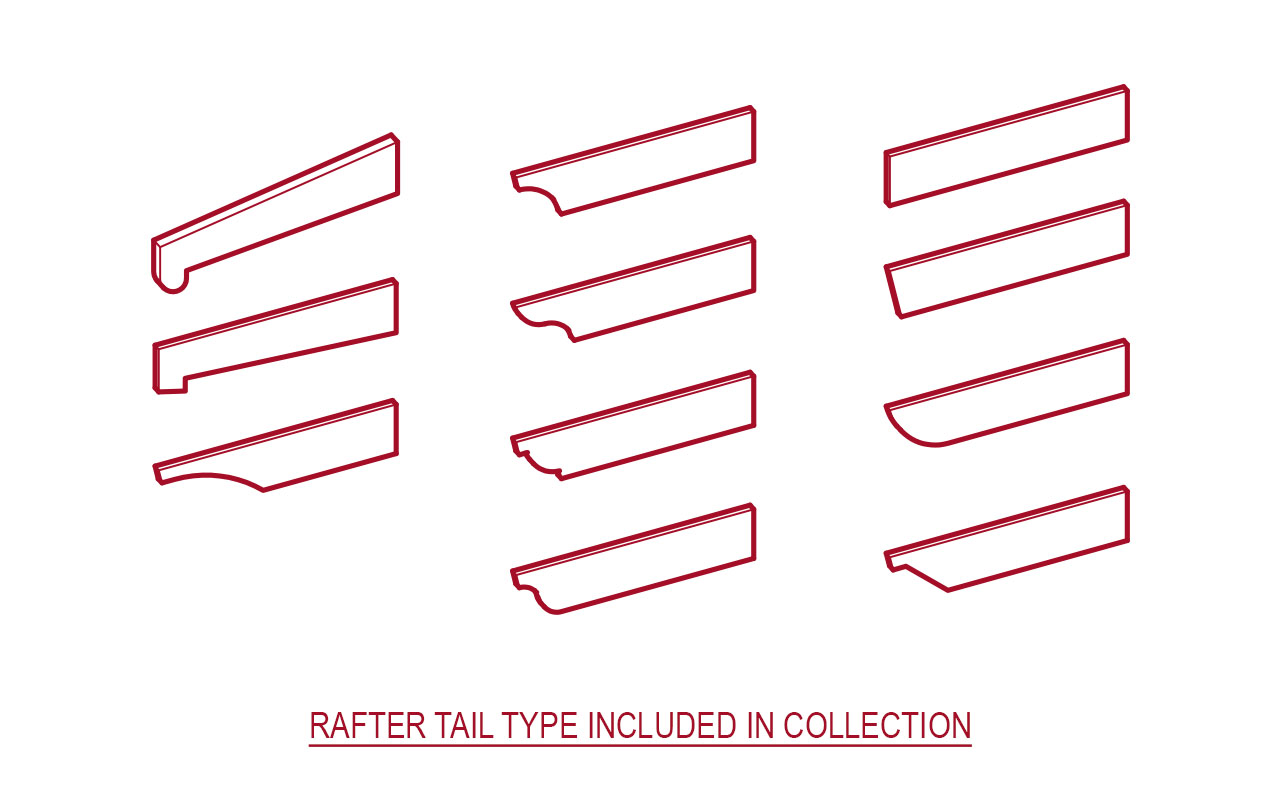

• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.
• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.

Version Log:

Version 2 –

• First and last rafter families are now inside the line based family
• Missing Rafter Family Type #6 included in the family now
