Standard Residential Wood Deck – Revit Details

Typical Deck Details based on the International Residential Code. The design details in this document apply to residential, single level decks only. Made as Revit Drafting views. Modify them as required to comply with your local building codes for permit submission. Read Additional information section for more details.

See additional information section for more details.

Note: Adopted building codes varies widely across city & counties across North America, and one detail fit all is not a possible solution. These are implied to be generic details and modify based on project by project basis.

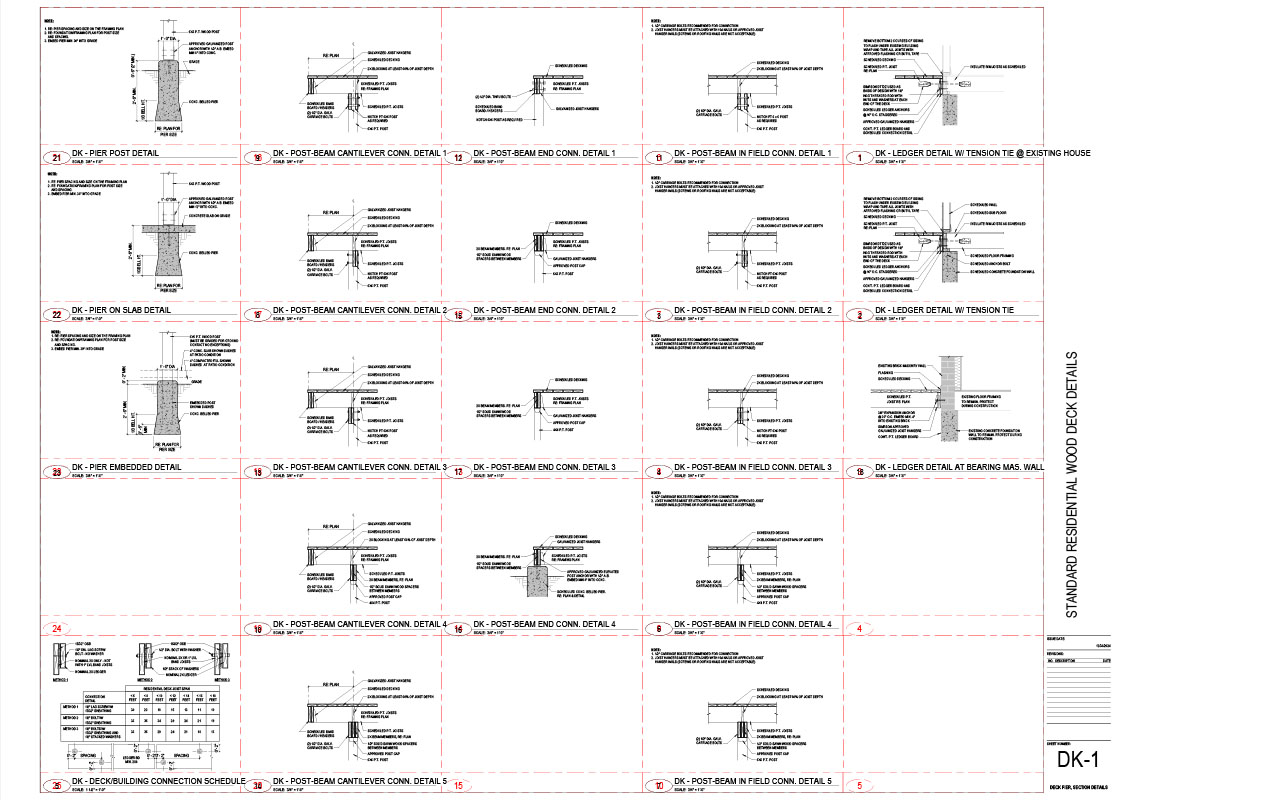

This set includes over (33) Details and growing:

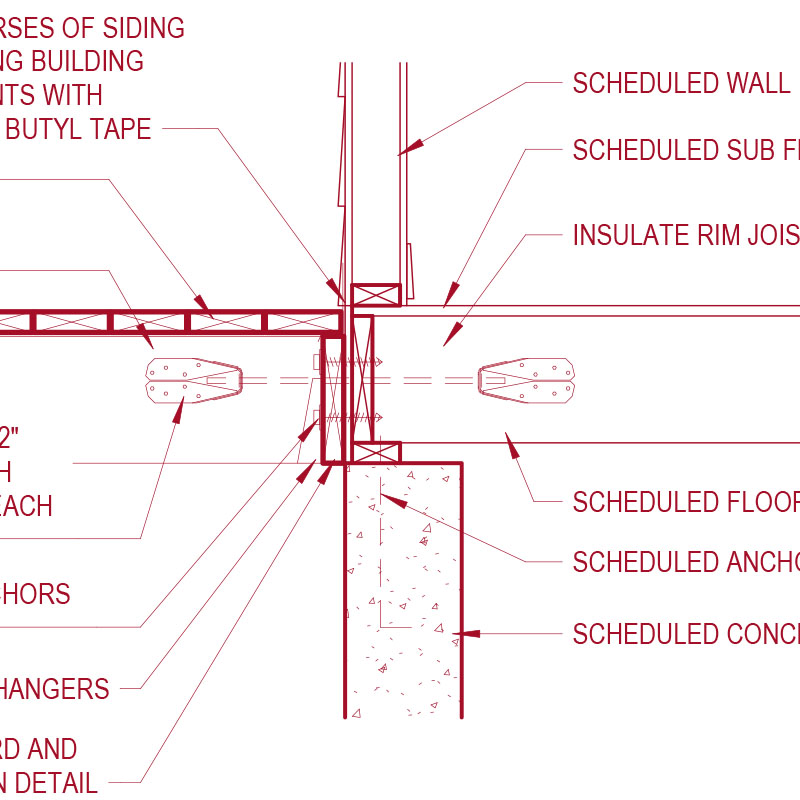

• Ledger Board to House Connection Details
• Post to Beam in-Field Connection Details
• Post to Beam End Connection Details
• Post to Beam Cantilever Connection Details
• Deck/Building Connection Schedule

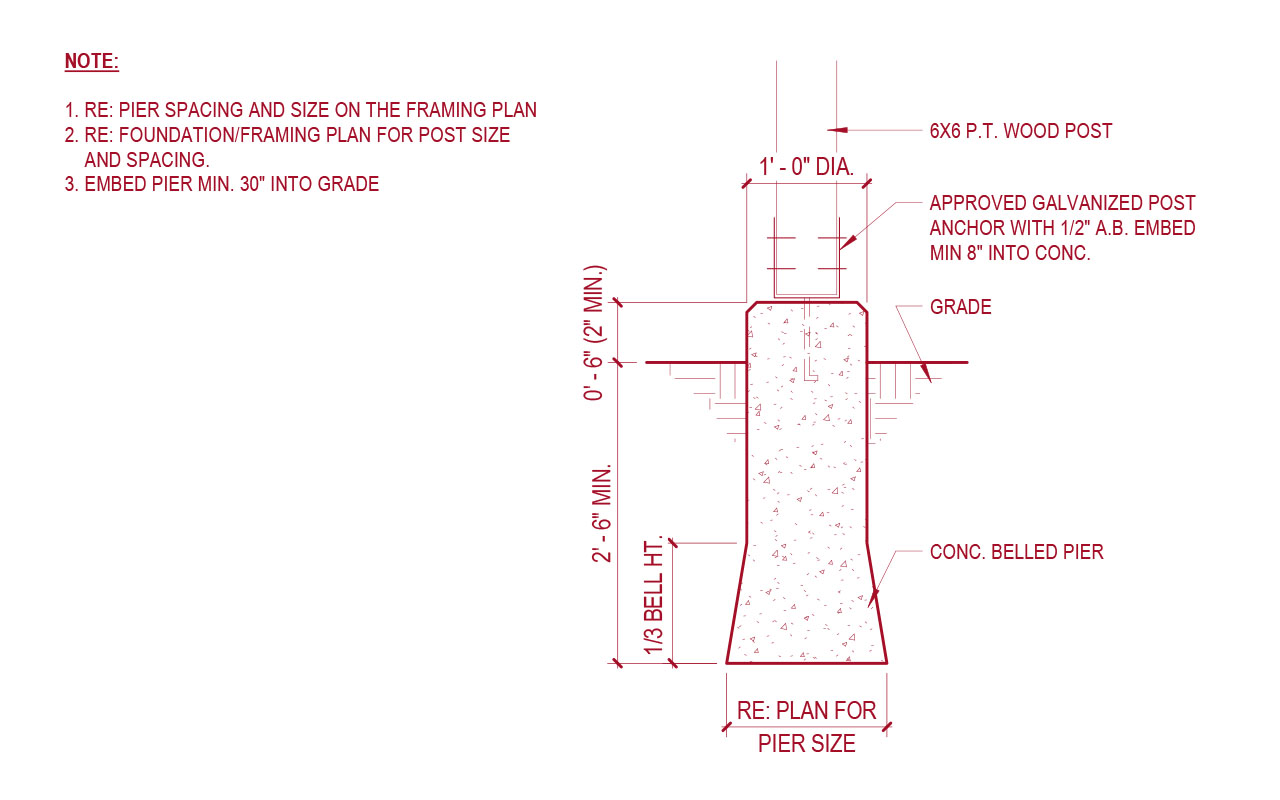

• Pier Details

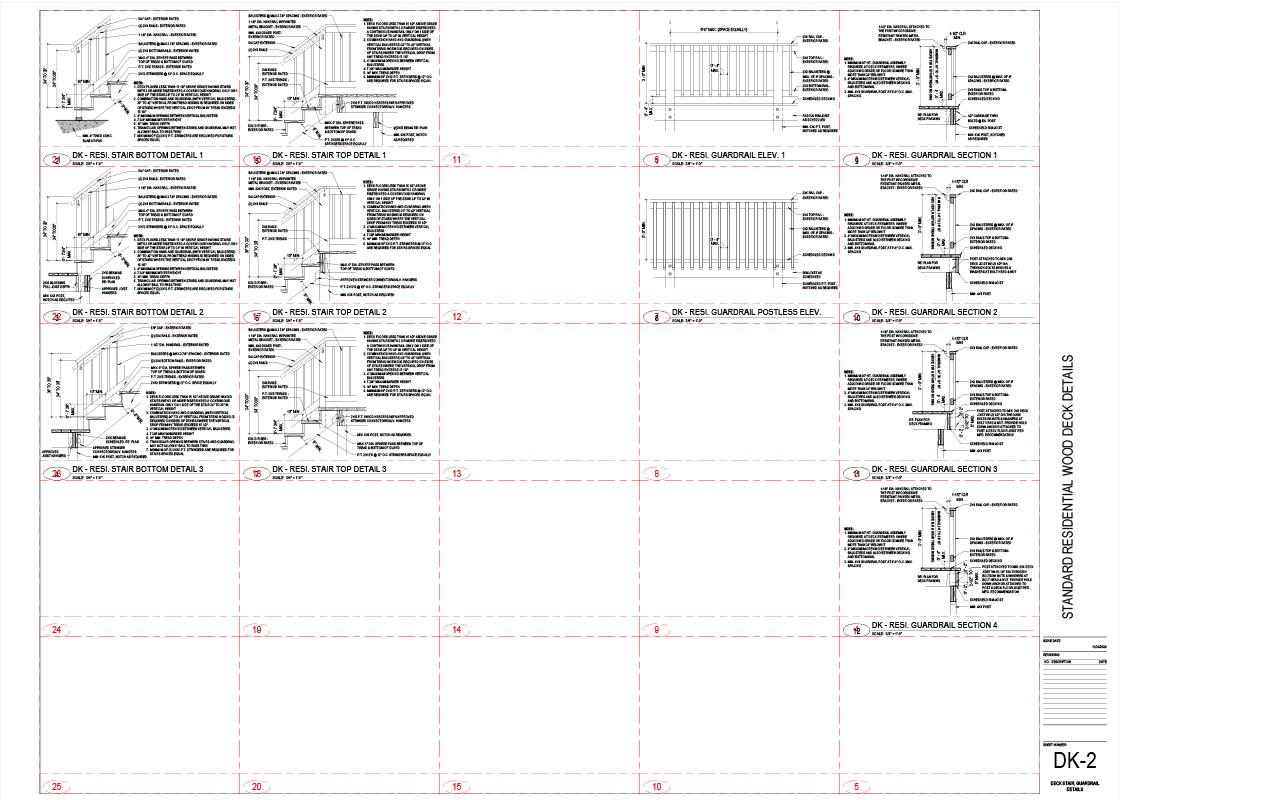

• Typical Top & Bottom of Stair Details
• Typical Guardrail Details
