Residential Deck – Revit Family Collection

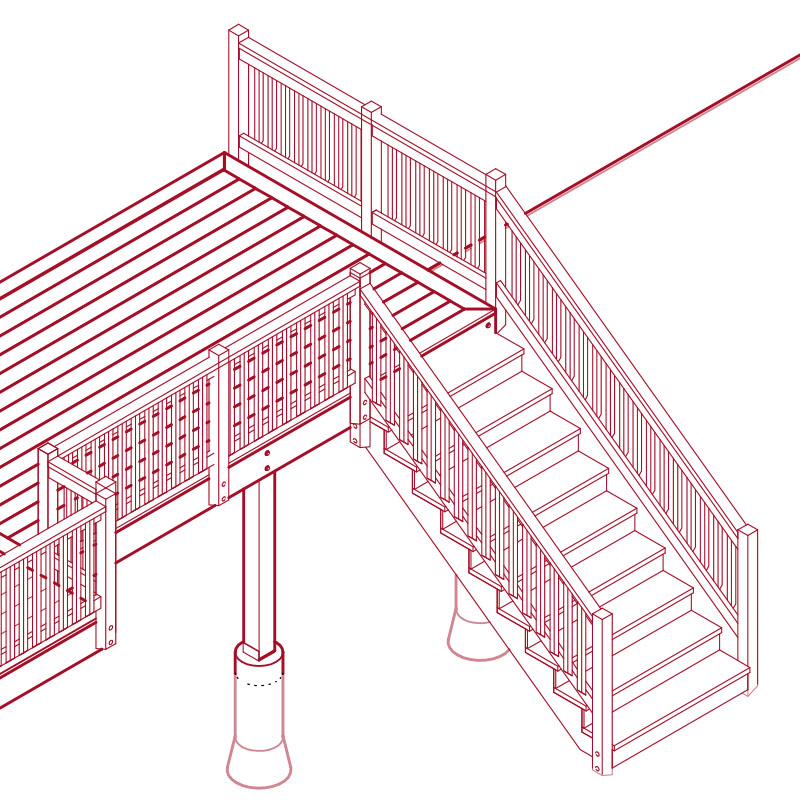

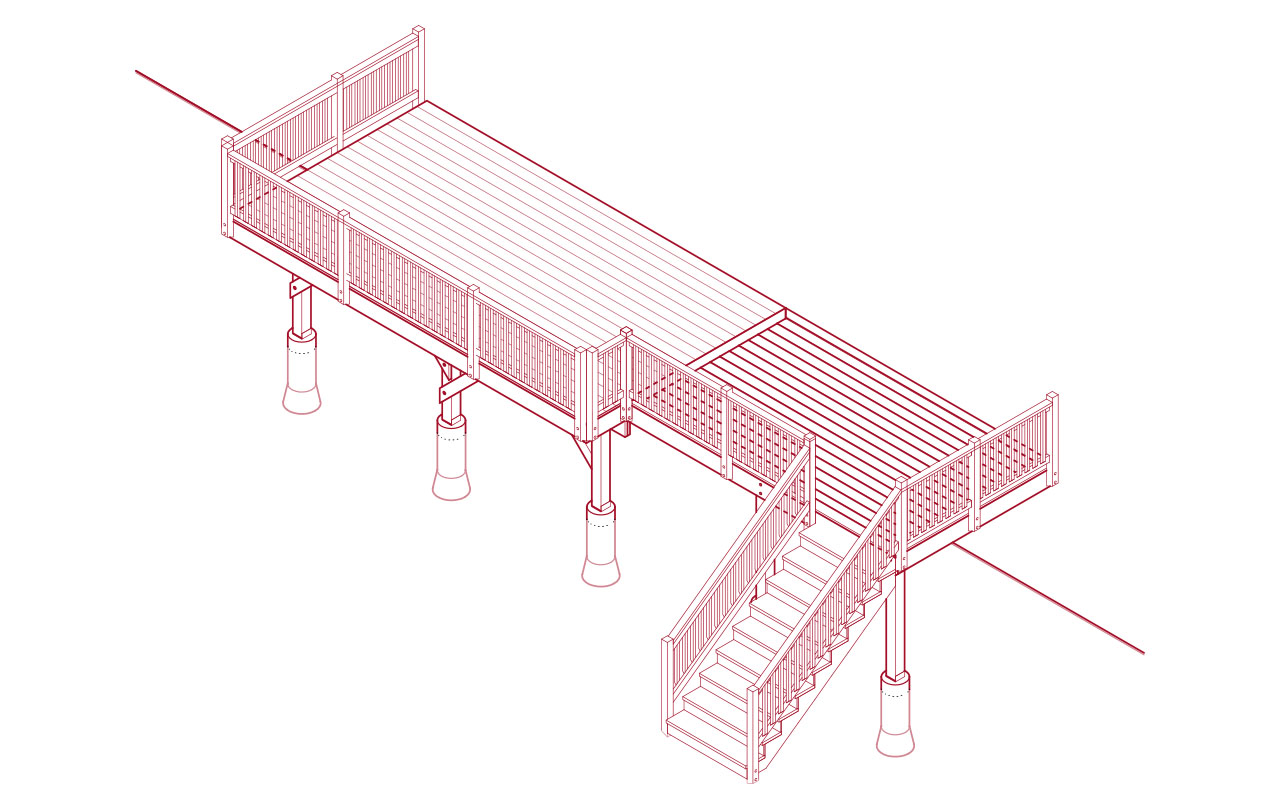

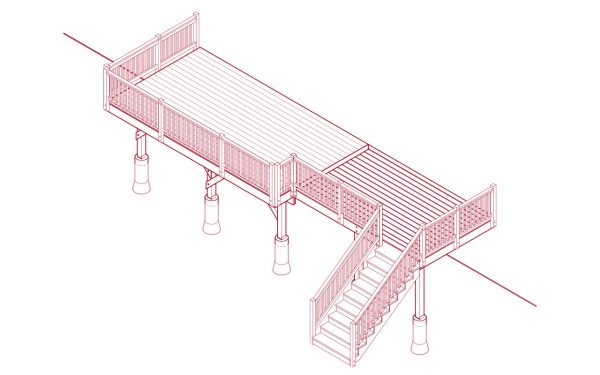

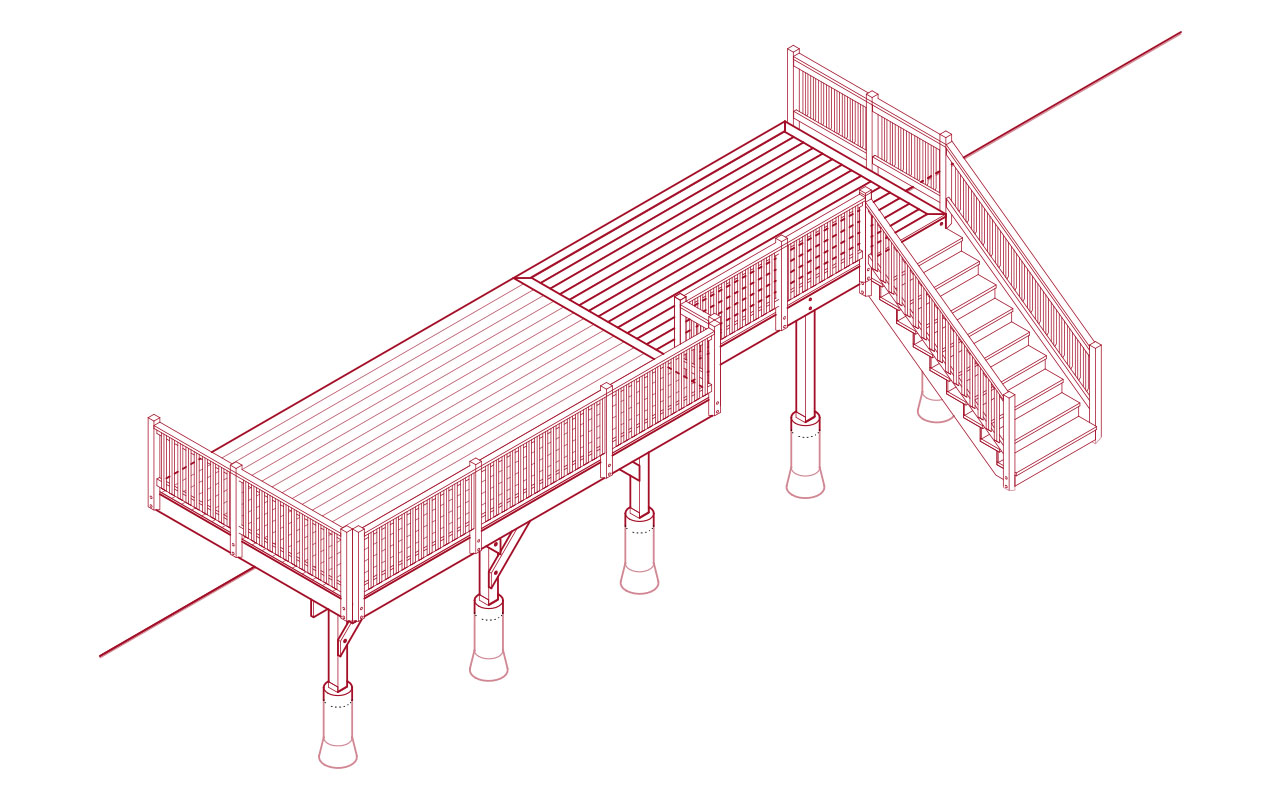

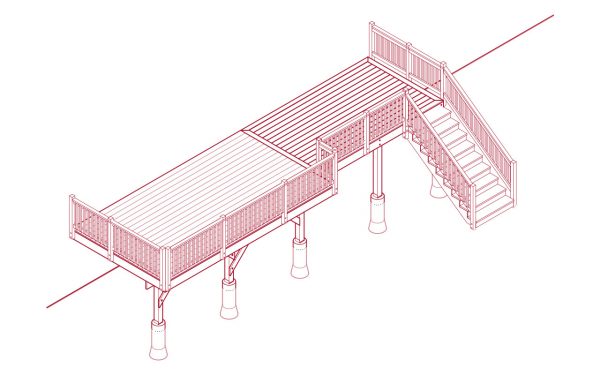

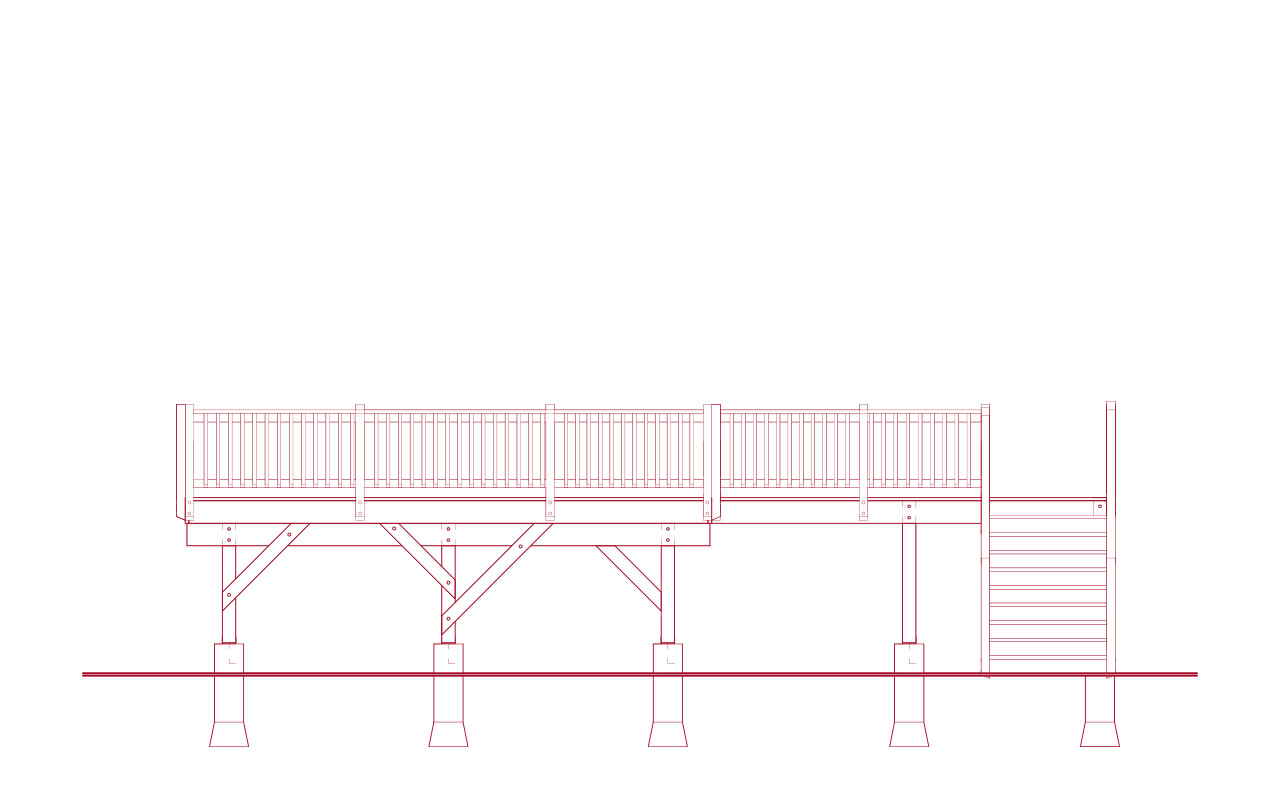

This Residential Deck Revit Family can create all the different versions of Decks you want to create for your next project. Family collection includes custom deck elements families from Posts, footers, joist types, guardrails and stairs, etc. with associated graphic annotation inside the families to minimize the post-processing work during deck framing drawings. Check the below video to see families in action:

Enhance your experience with our Wood Rafter family to create pergolas & other overhead elements in no time. See: Wood Rafter Family for more details.

See additional information section for more details.

Family Parameters:

• Post w/ footer Family:
  • Turn on/off: Top notch, fasteners/hardware and post base, footers, etc.
  • Nested Families: Top Notch types, Post Base, Footer types, etc.
  • Consistent sectional graphics across all views.
• Footer: adjust curb height, optional bell diameter, etc.
• Joist w/ Hangers: on/off Hangers, Consistent sectional graphics across all views.
• 5/4″ generic Revit floor decking & more detailed 2x decking w/ optional end angles to adjust based on conditions. modify instance width/depth parameter to individually adjust any board in the deck.

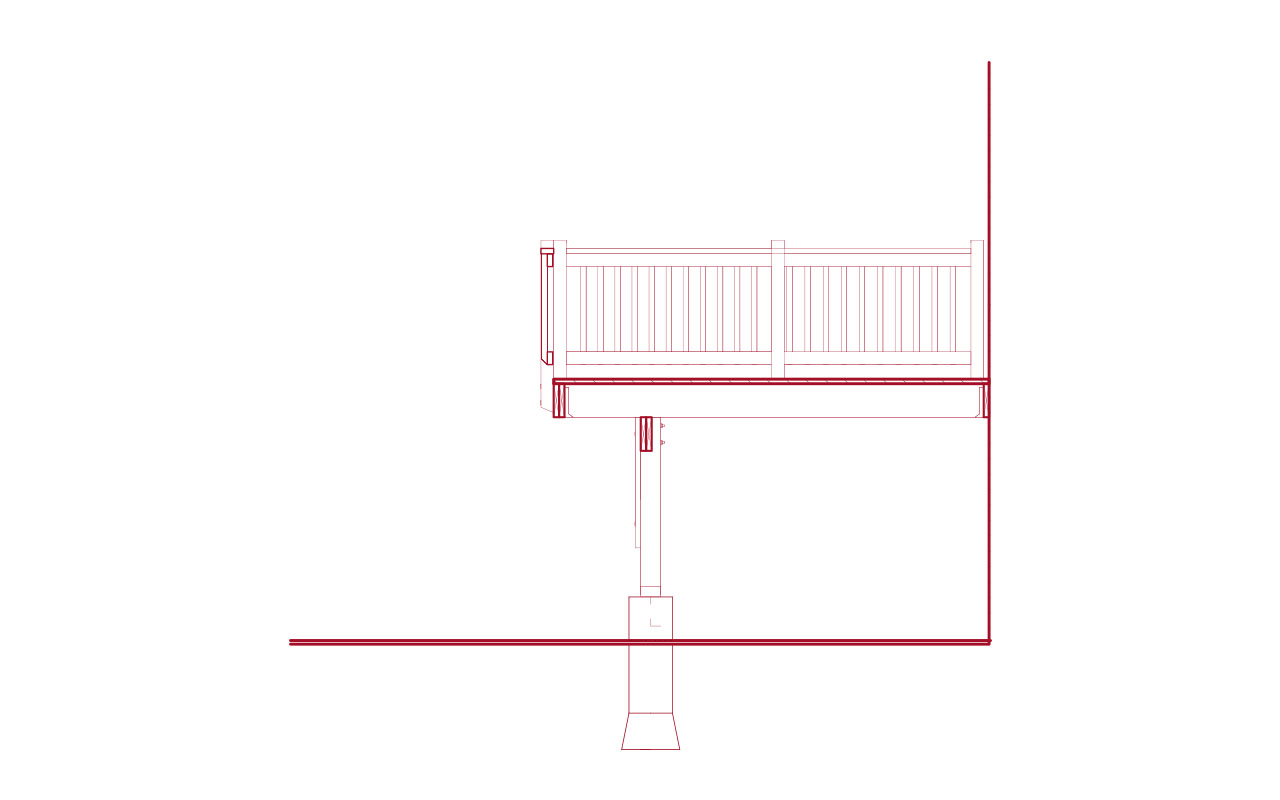

• Guardrail: based off typical 2x lumber sizes with top rail to modify based on varies needs. 4×4 and 6×6 railing types included. Options of face based and floor based railing types.

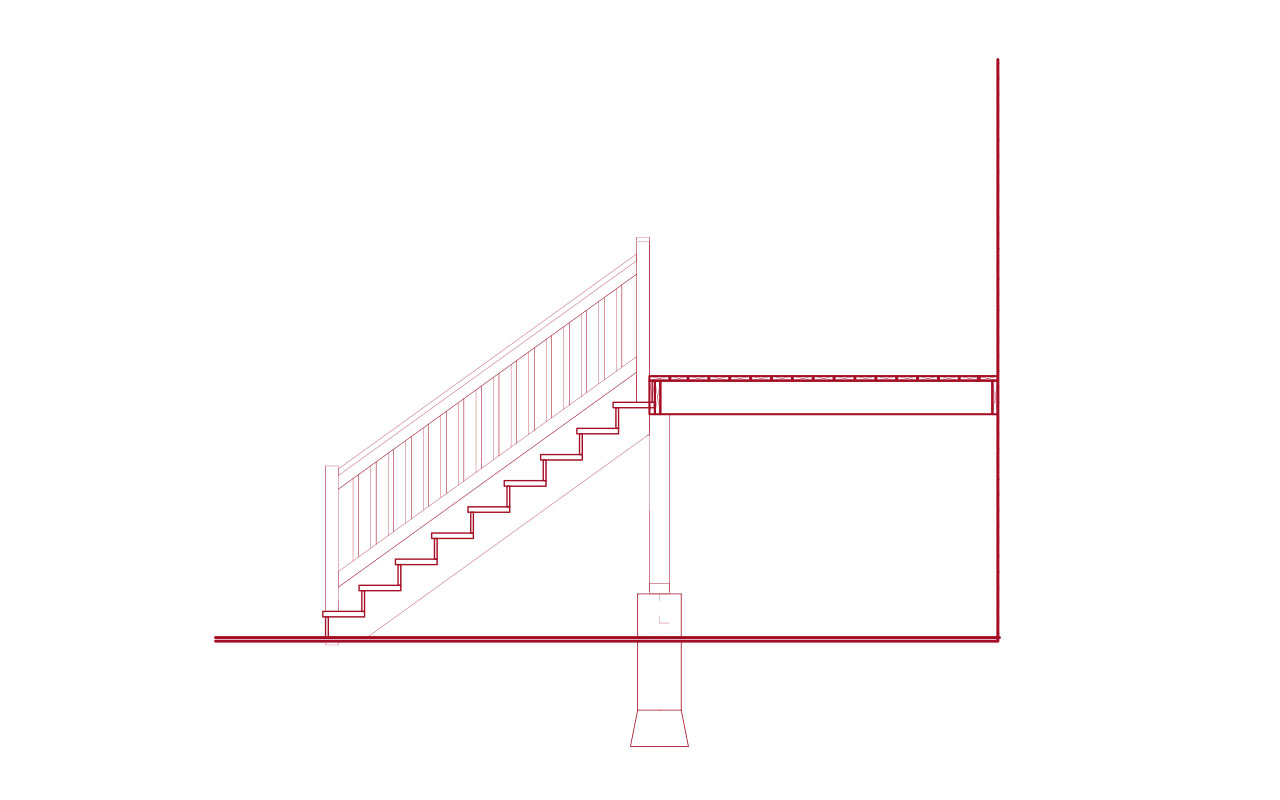

• Stair: (3) different types of stairs.
• Parametric 2x & 6×6 knee brace family with on/off hardware option.
• Based on Revit native structural framing, column, foundation family types for consistent graphics across

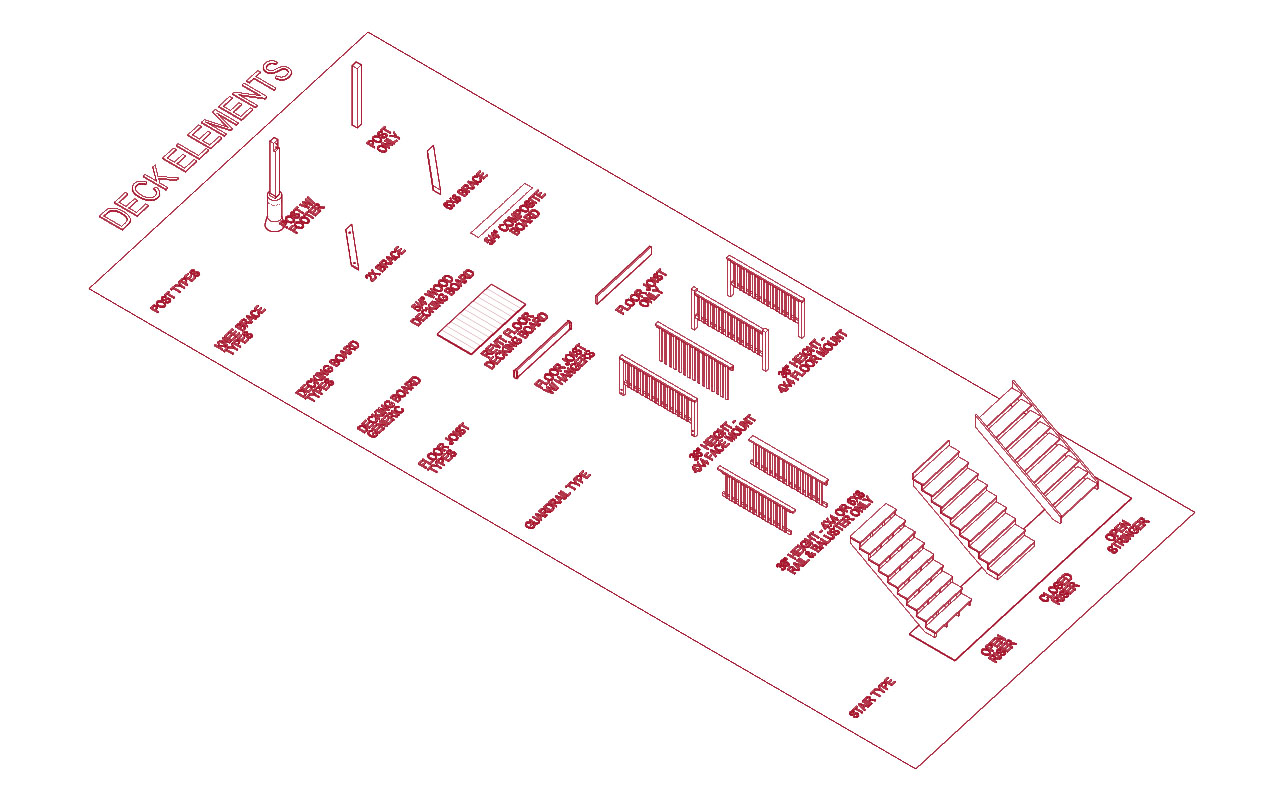

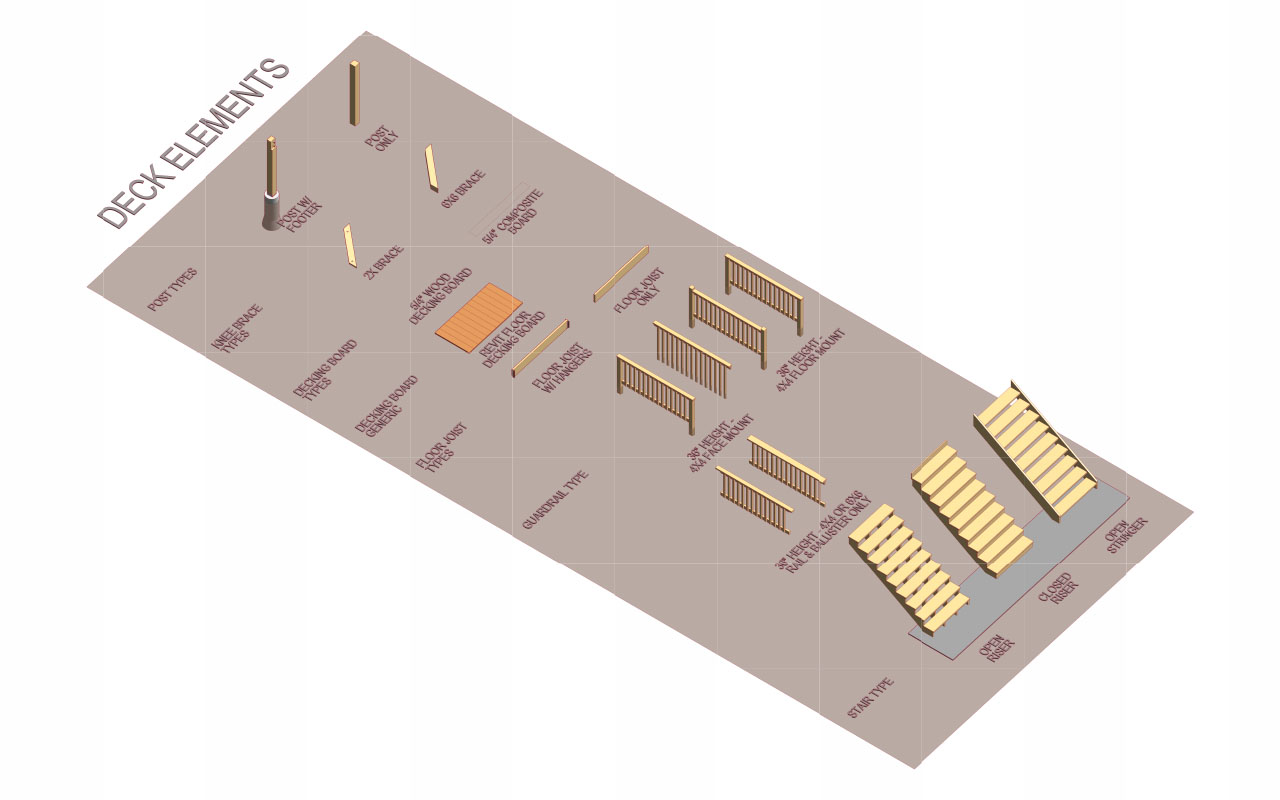

Files included with Purchase:

• Lumber square Post w/ footer & regular post Family
• Square & round Footer w/ optional bell Family
• 2x & square 6×6 Knee Brace Family
• Floor joist w/ Hanger & regular joist Family
• (6) face & surface based Guardrail Type Families
• (3) Stair type families
• Example Revit Project

Family Features:

• 100% Parametric: Ready-to-use fully parametric built inside the Revit family environment.
• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.

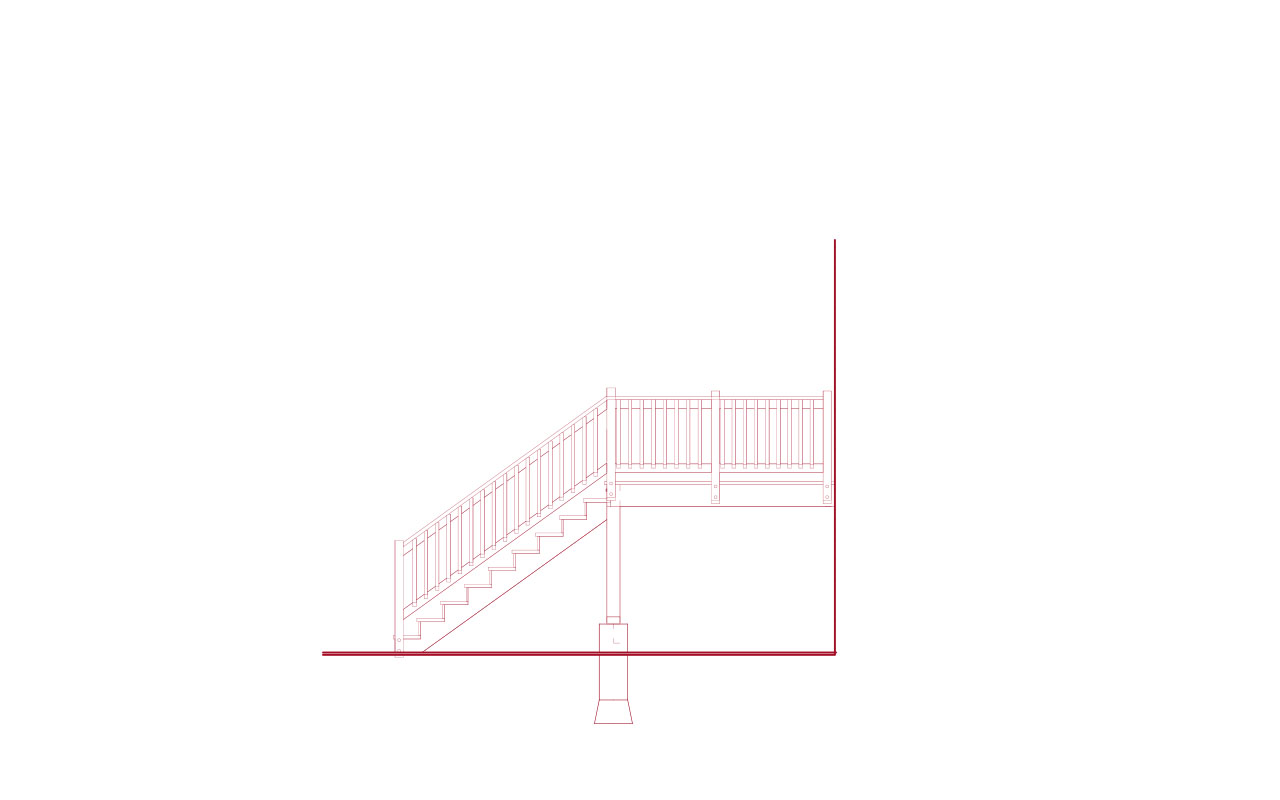

• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.

Version Log:

Version 1 –

• Family Collection released
