Pedestrian Crosswalk Stripe – Parametric Revit Family

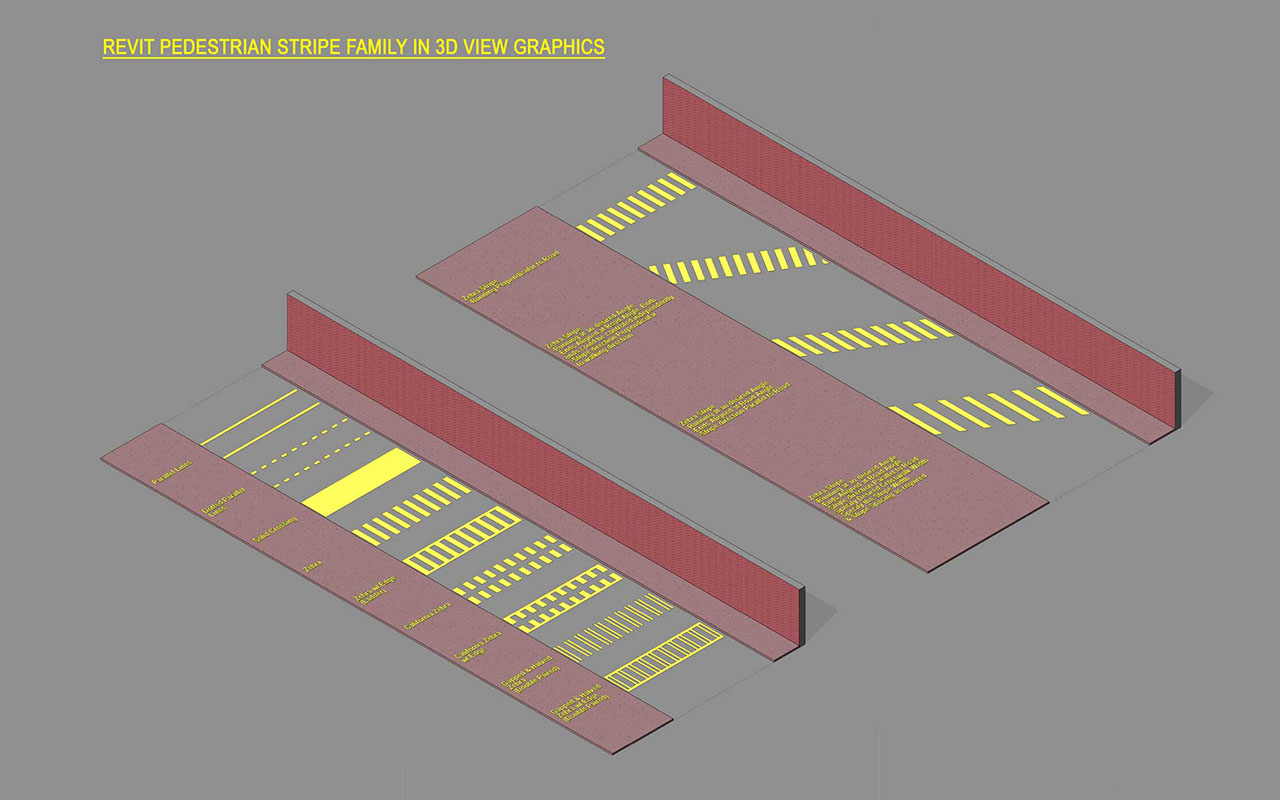

This parametric Pedestrian Crosswalk Stripe Revit Family can create all the different versions of 2D & 3D views that you will need for your next project, helping avoid common coordination errors.

Check the below video to see families in action:

Family Parameters:

• Revit line based family

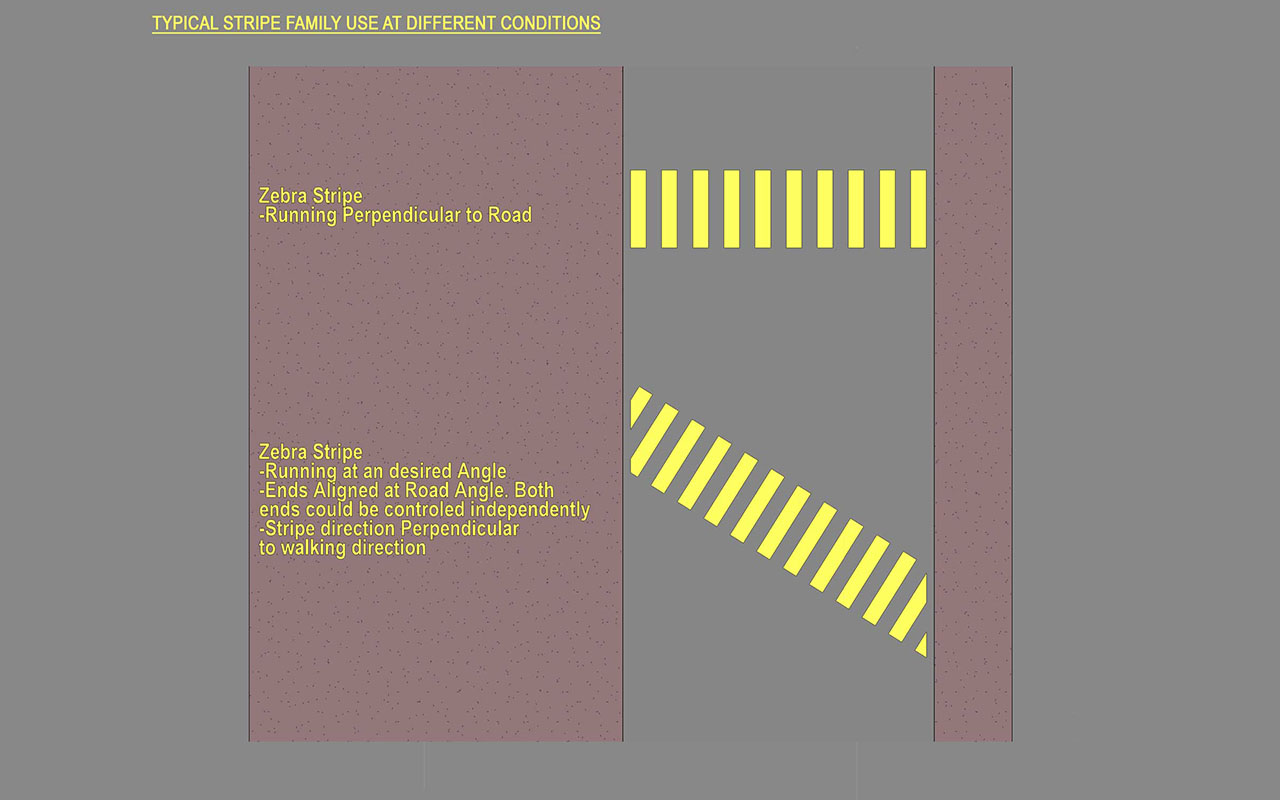

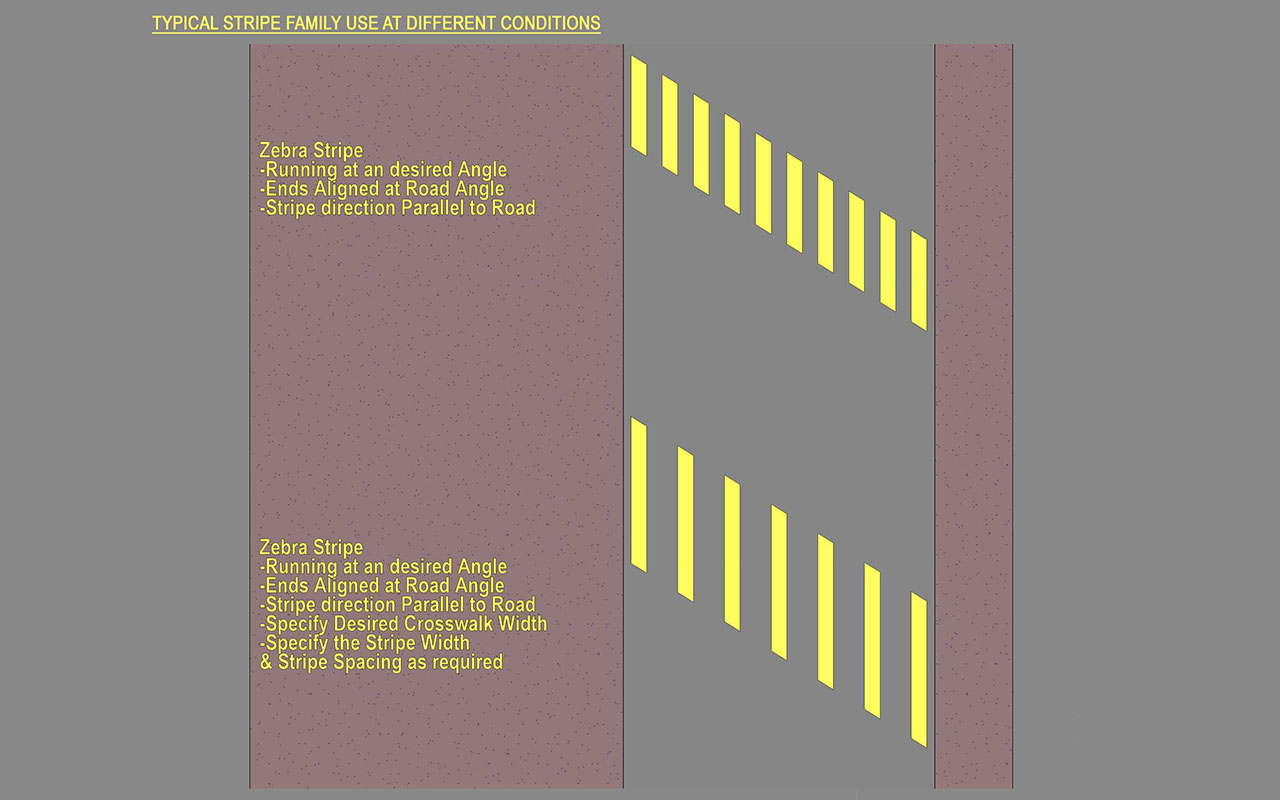

• Left/Right Pedestrian alignment angle parameter controlled individually based on specific condition
• Left/Right sides offset parameter
• Stripe Width, Spacing, Thickness, Angle, Material and Different type Styles parameters

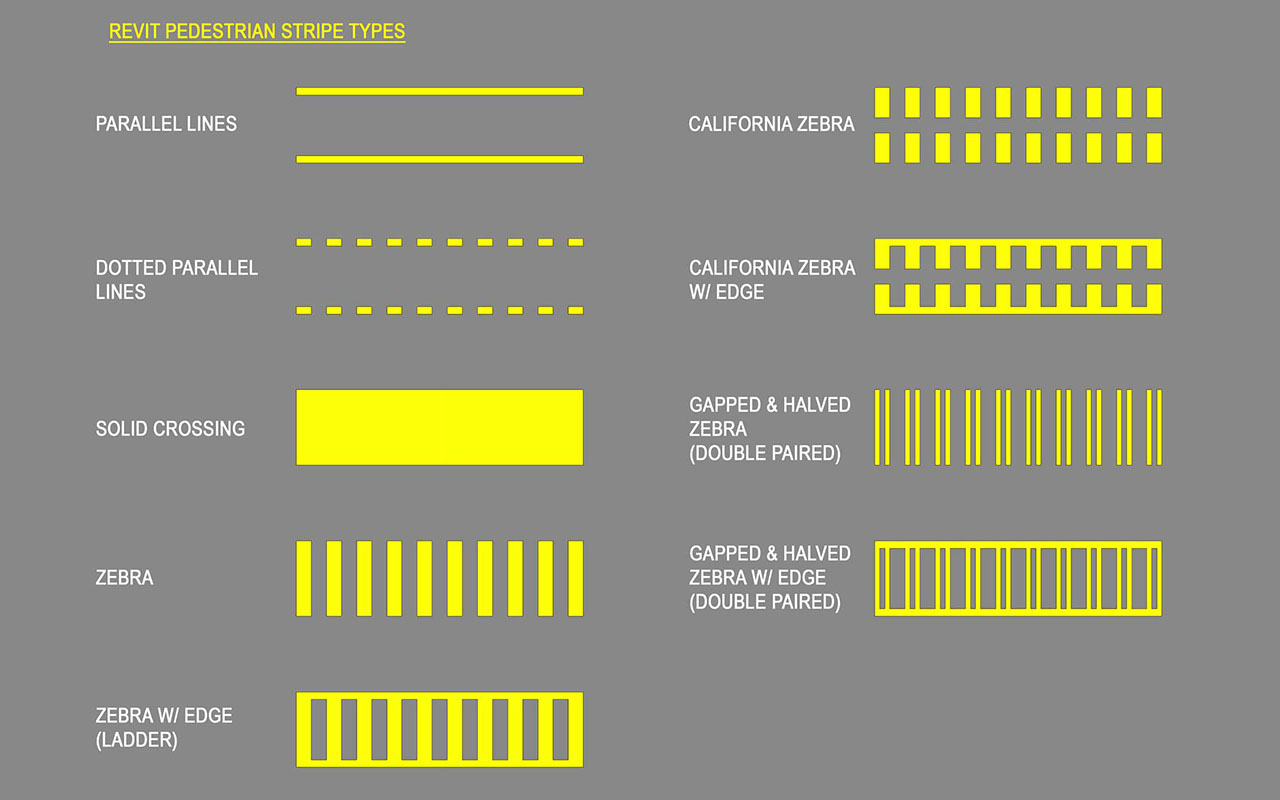

• Single Revit Family creates all different Pedestrian styles. Create new versions or swap between different nested family styles and parameters.

Files with Purchase:

• SITE – Pedestrian Stripe.rfa – Revit Family for use
• SITE – Pedestrian Stripe.rvt – Example Revit Project

Features:

• 100% Parametric: Ready-to-use fully parametric smart families built inside the Revit family environment.
• Full Customization: From annotation symbol to each displayed text is customizable per your office standards.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family. Use everywhere on your project without worry.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families. Contact us if you need any help!
• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
