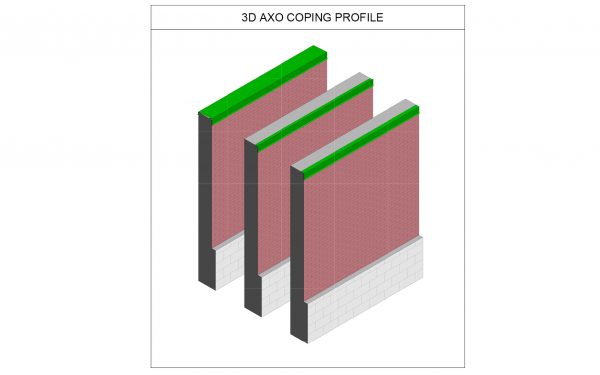

This Metal Coping fully parametric Revit profile Family can create all the different versions of coping you will need for your next project. Wall thickness parameter to flex the family accordingly makes it easier for creating different iterations. Adjust front and rear face height per your project needs. The profile read correct in 3d, wall section and elevation views.
See additional information section for more details.
Family Parameters:
- Fully Parametric Revit Generic Profile based family which could be used with Wall Sweep, In-place model, etc.
- Parameter to adjust Front Face Height, Rear Face Height, and Wall Thickness to adjust the coping width
- Consistent graphic across all views
- Single Revit Profile Family creates all different Coping styles
Files included with Purchase:

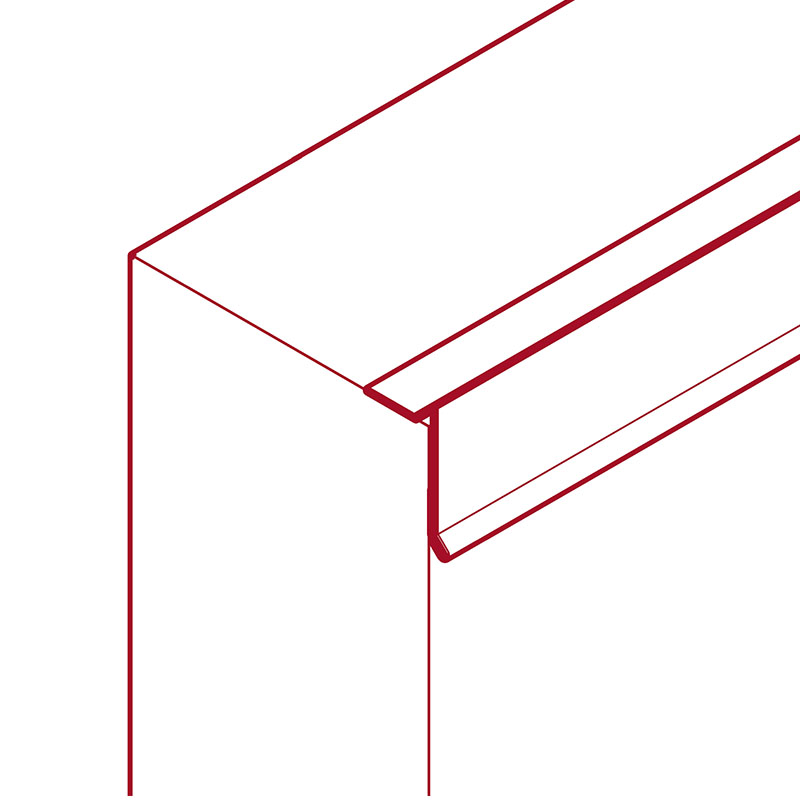

- Coping-Metal Continuous Cleat Revit Family
- Coping-Metal Gravel Stop Revit Family
- Coping-Metal L-Shape Edge Revit Family
- Example Revit Project
Family Features:
100% Parametric: Ready-to-use fully parametric smart Profile family built inside the Revit family environment.
Full Customization: Family creates all different types & more.
Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
Consistent around Phases: Use the same family from preliminary through the construction documentation
Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
