Gable Bracket – Parametric Revit Family Collection 1

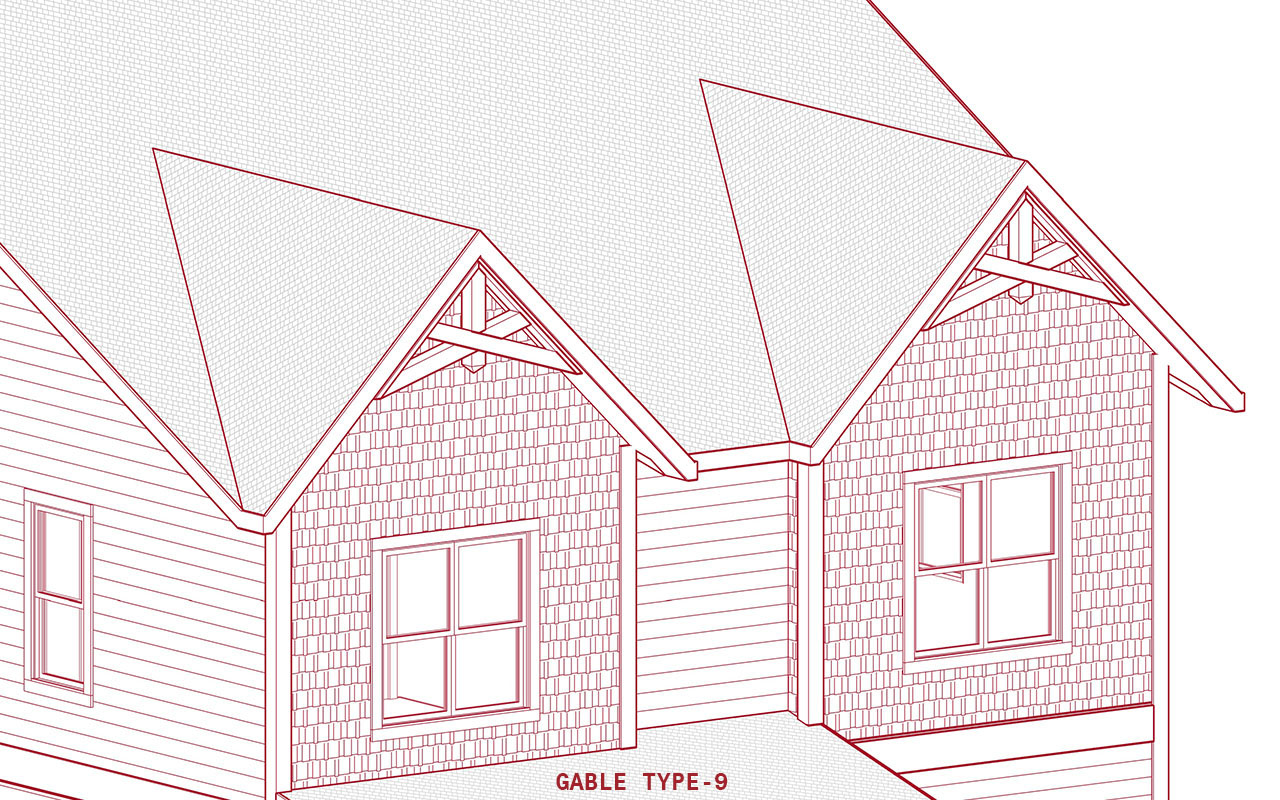

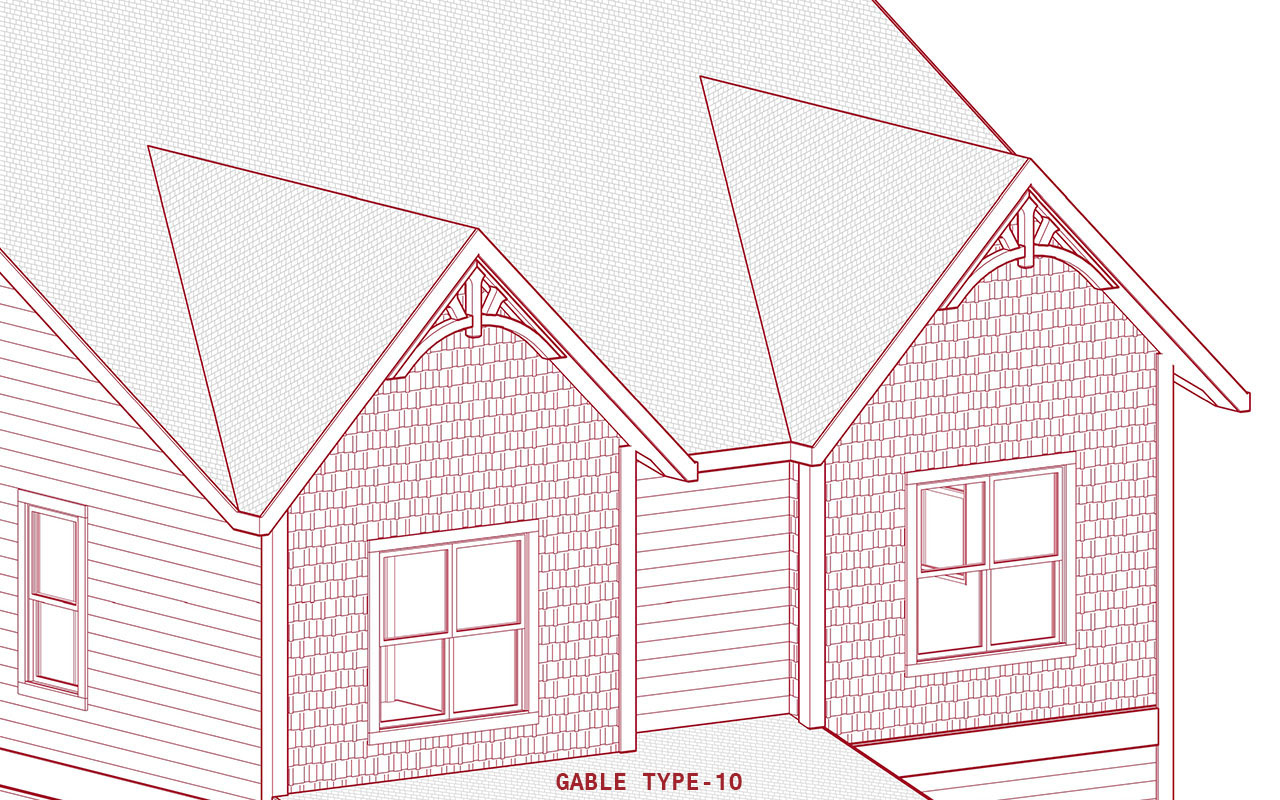

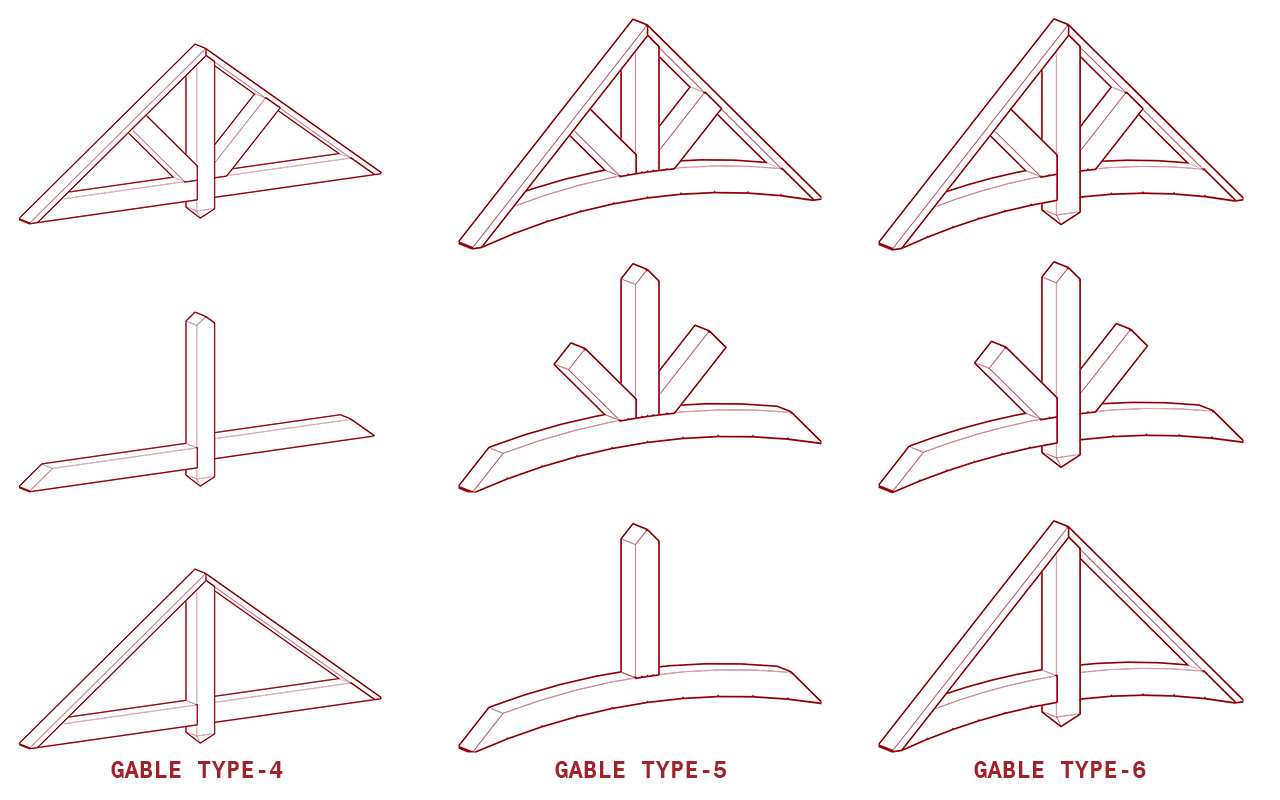

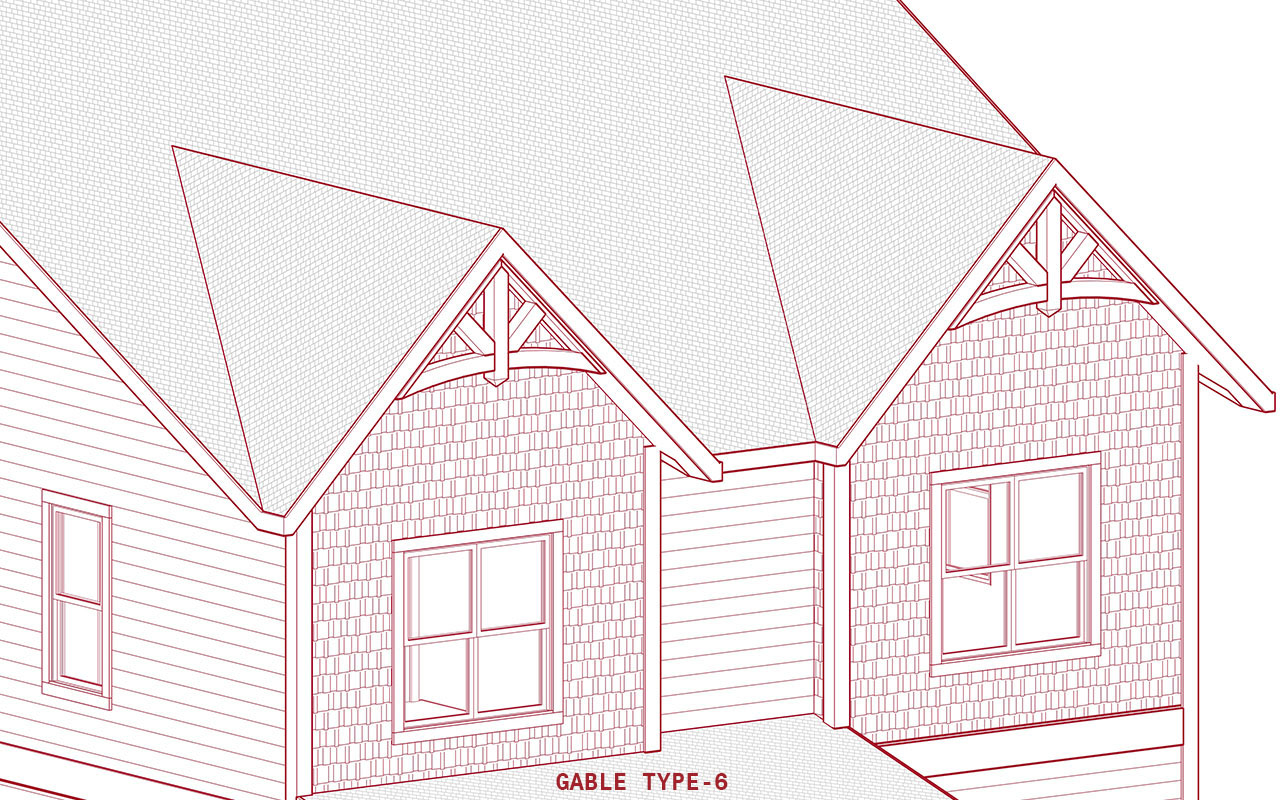

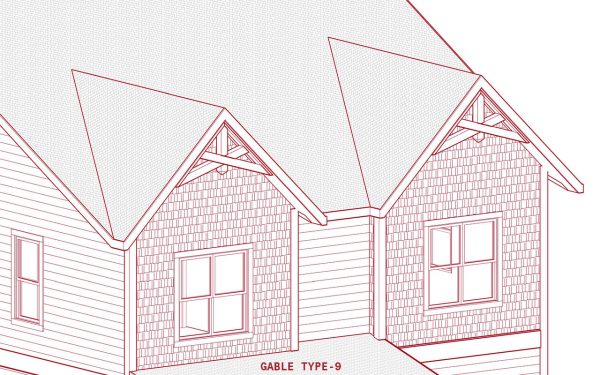

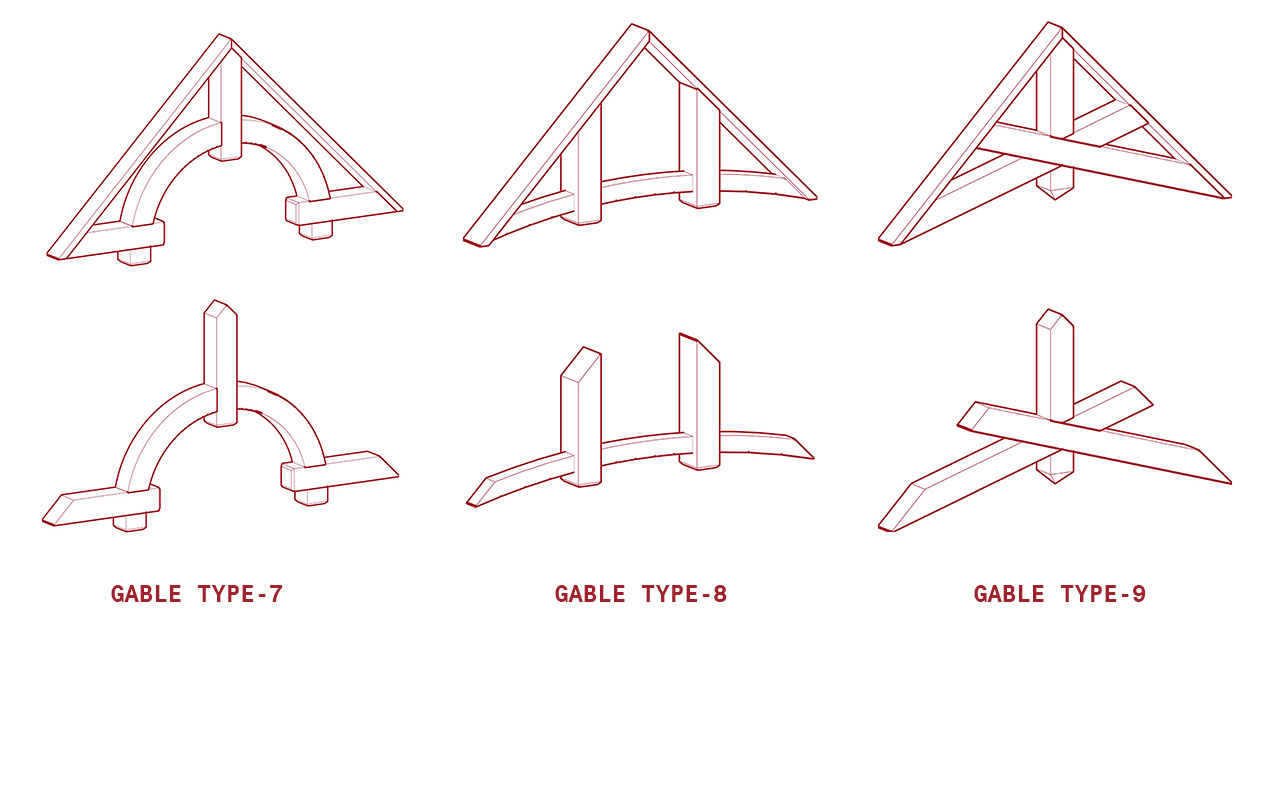

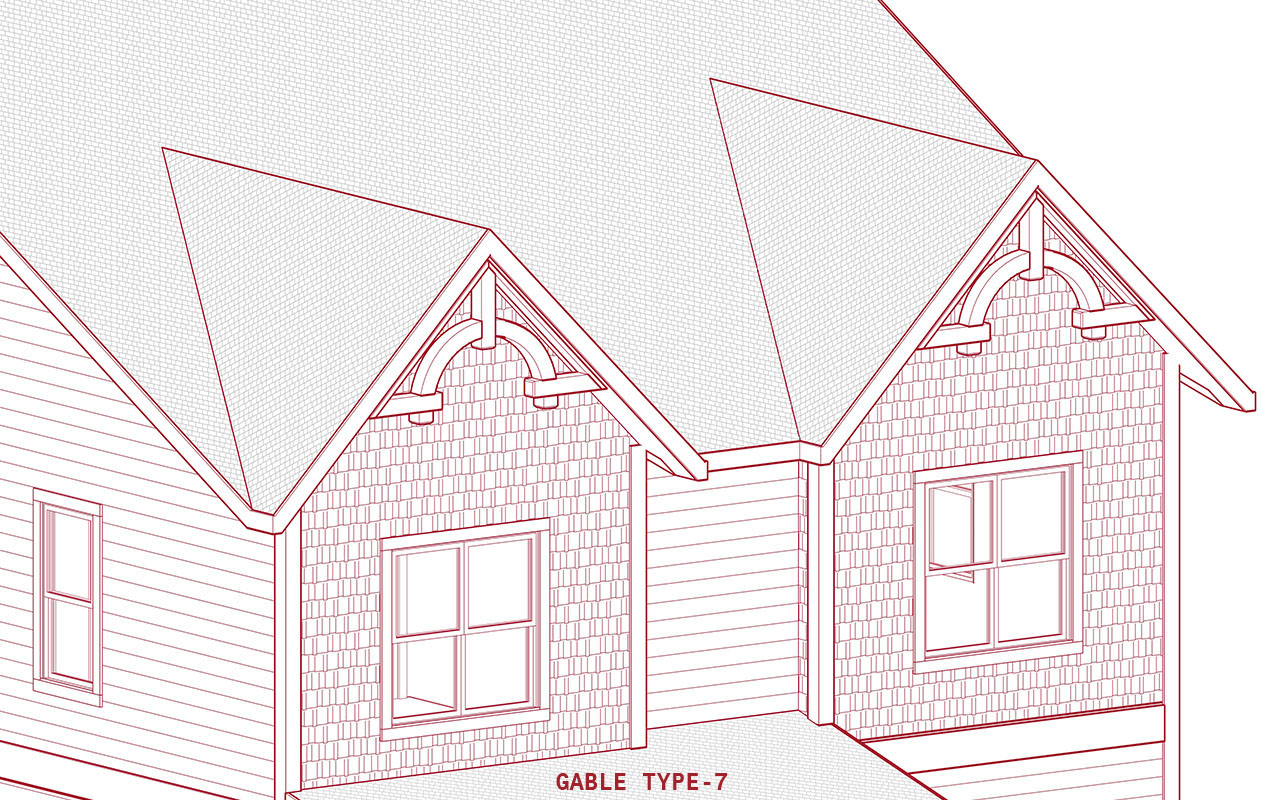

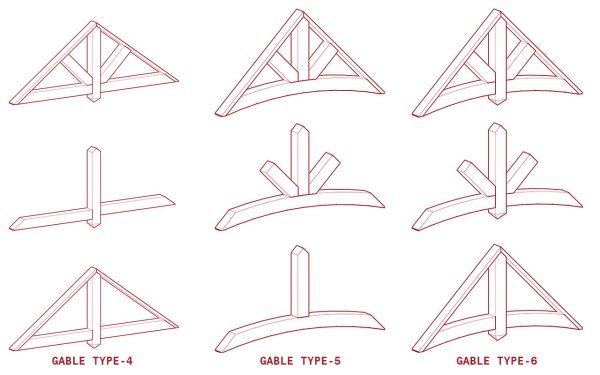

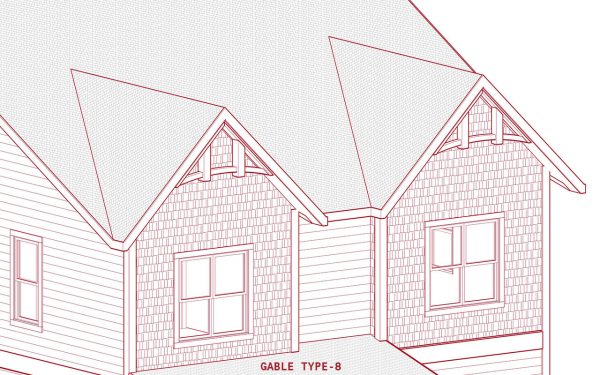

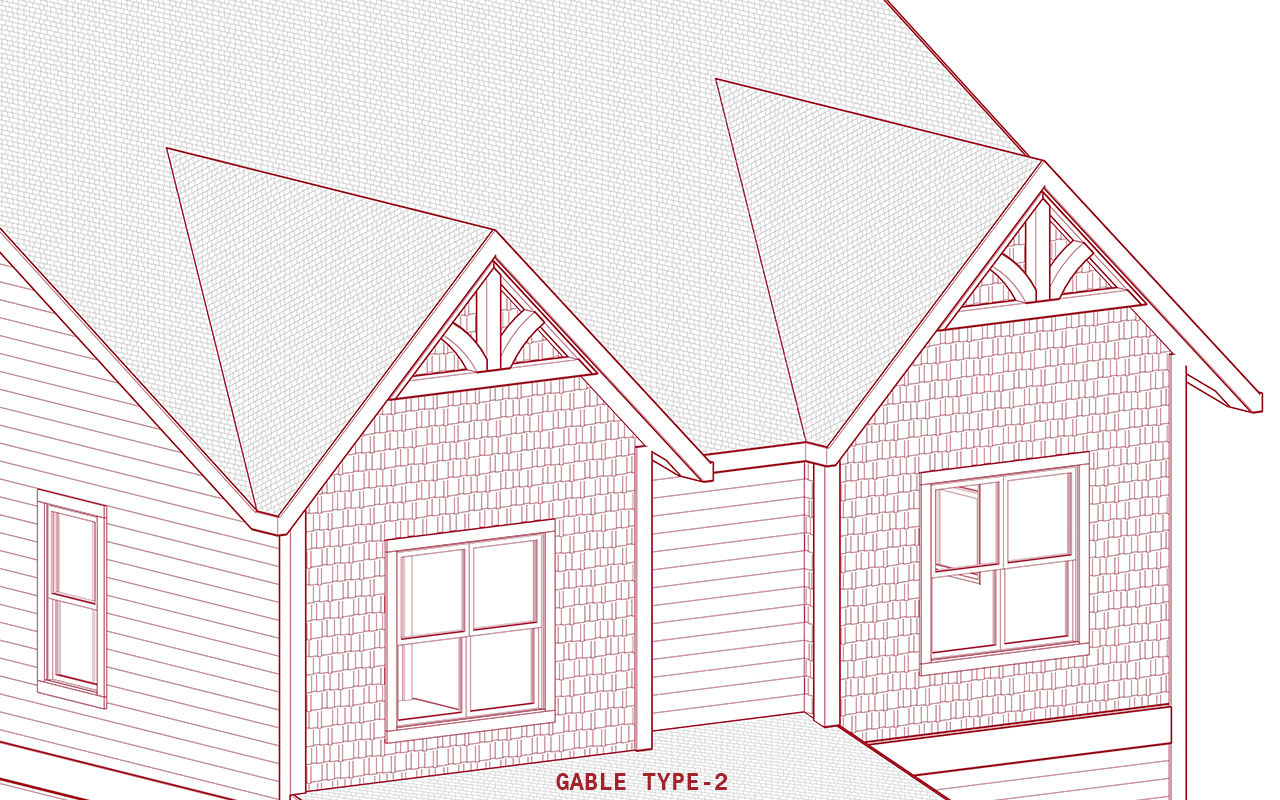

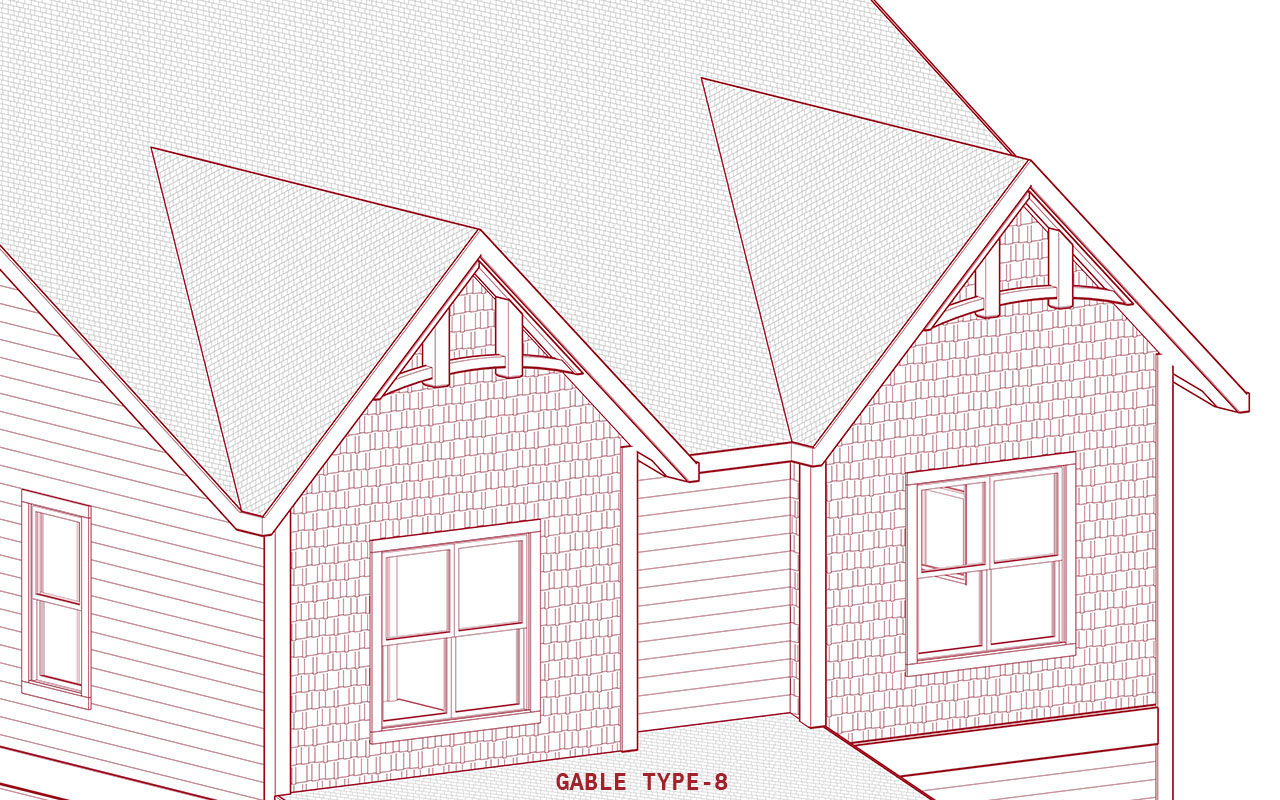

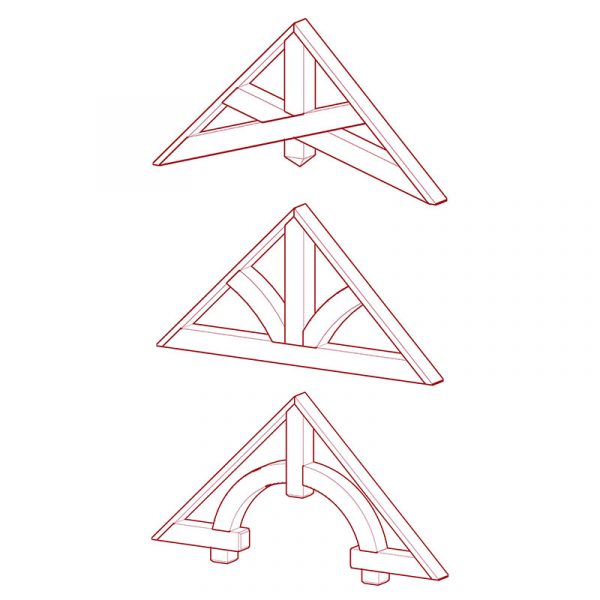

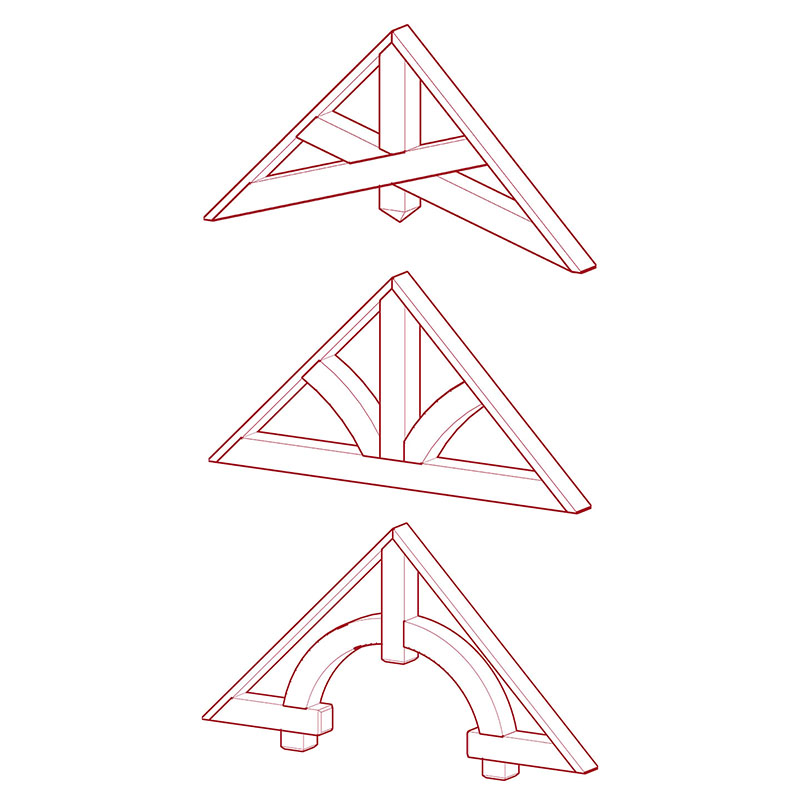

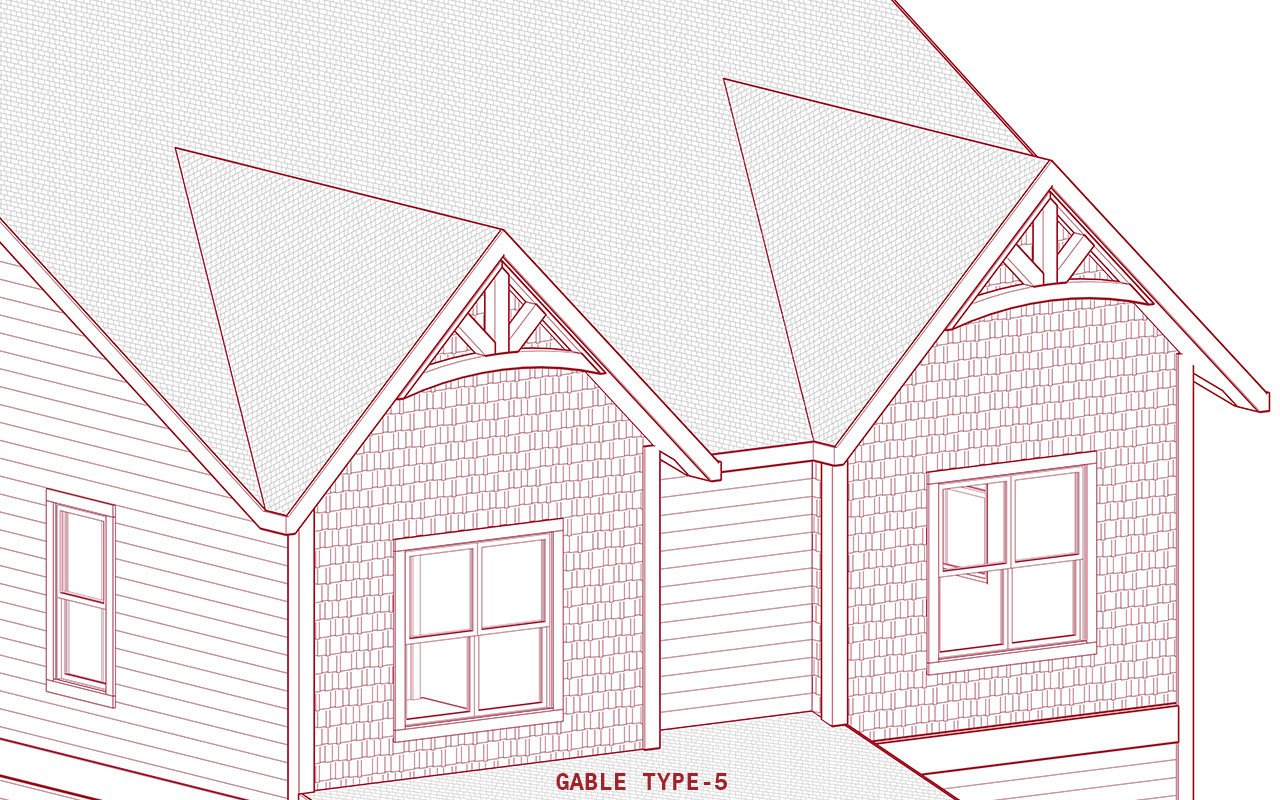

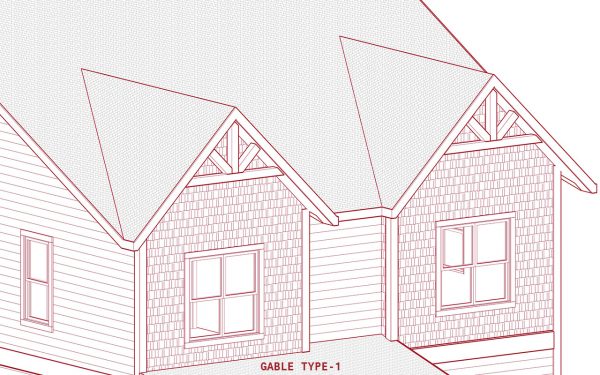

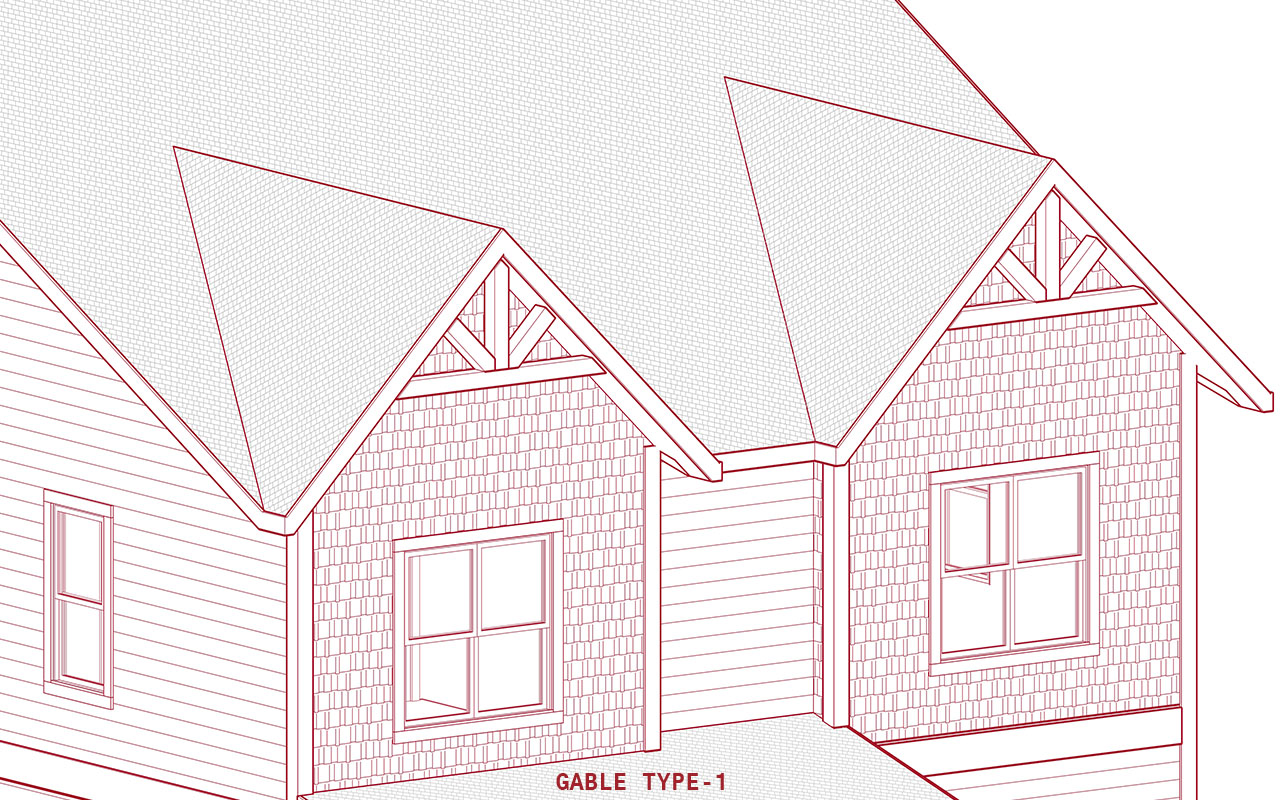

This Gable Bracket Revit Family Collection can create all the different versions you will need for your next project. It includes (11) different Gable Brackets fully parametric and ready for any customization. Consistent graphics all across the views! Check the below video to see family in action:

See additional information section for more details.

Family Parameters:

• Adjust gable bracket slope angle per roof slope
• Show/Hide – Mounting bracket
• Bracket offset from Wall
• Bracket overall Height & width
• Bracket Board width and depth
• Gable Bracket Material
• Adjust Arc Height if available

Files included with Purchase:

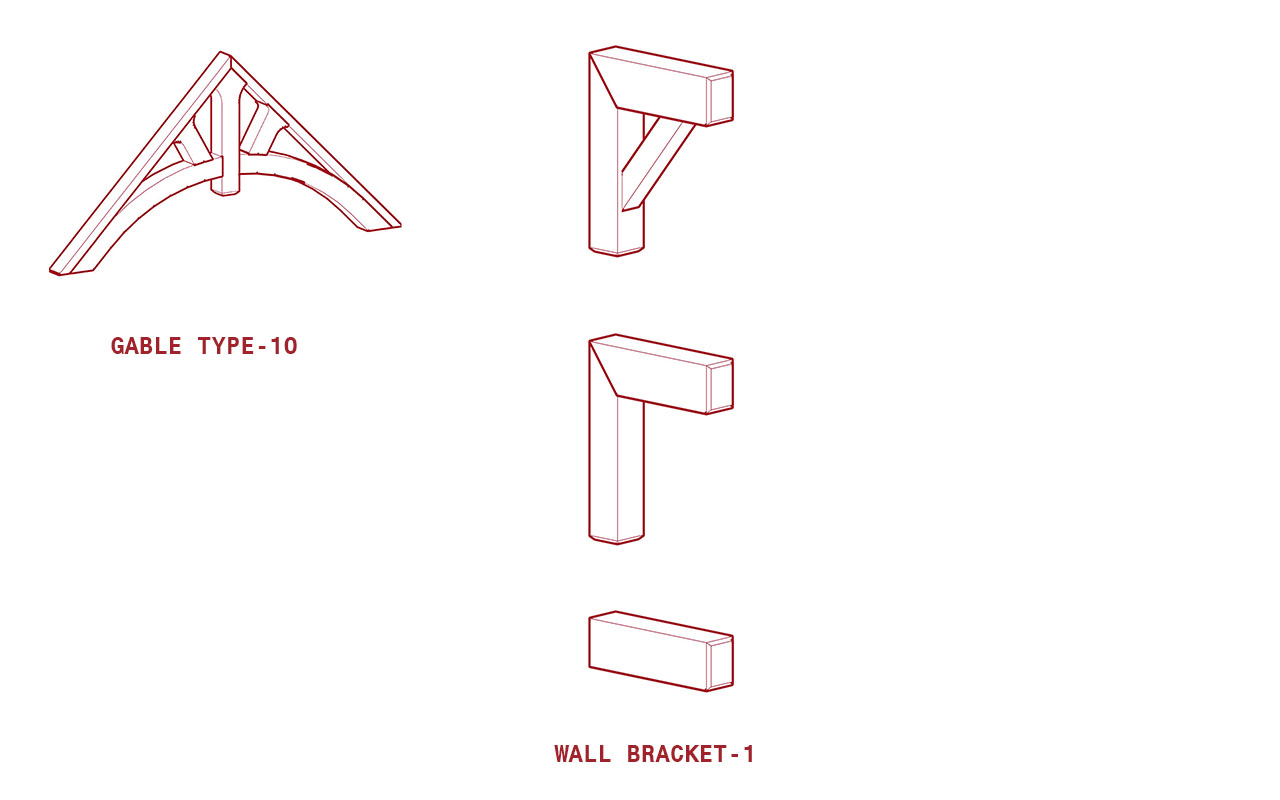

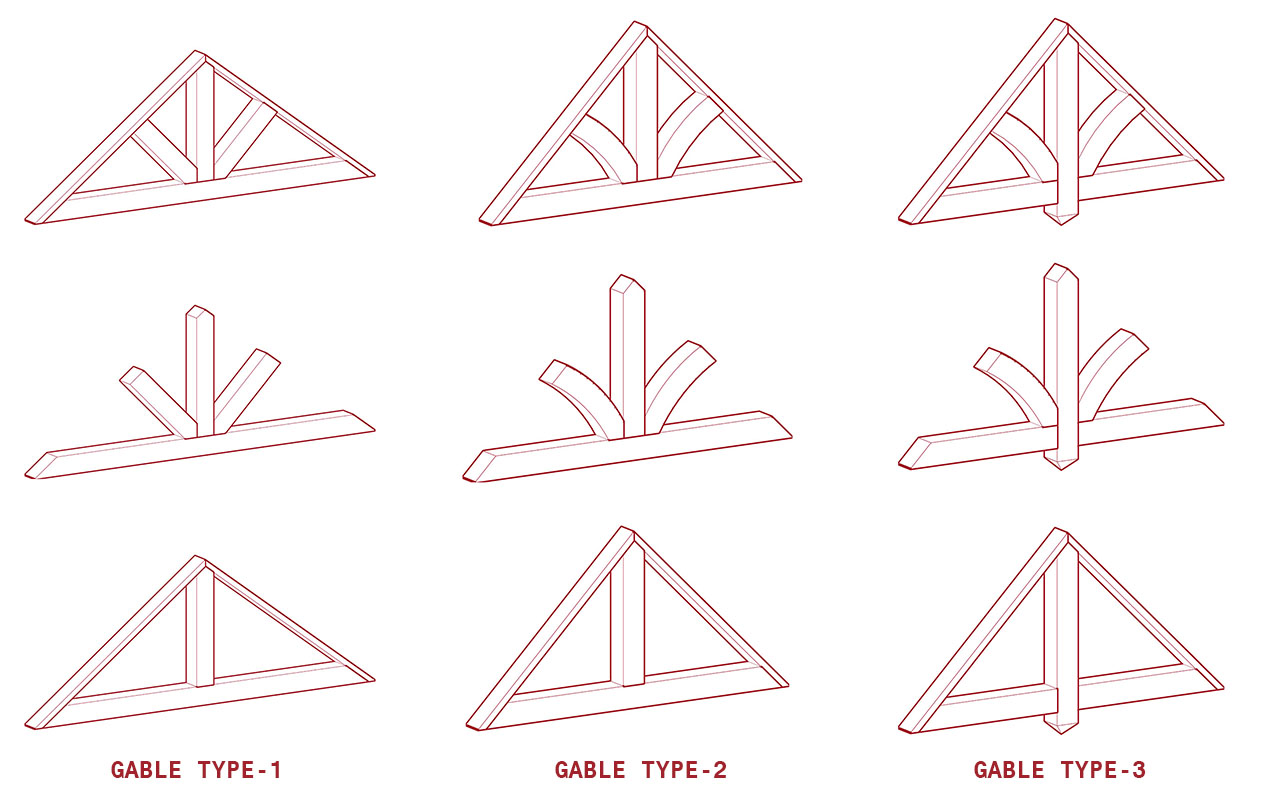

• (10) Gable Bracket – Generic Model Face Based Revit Family

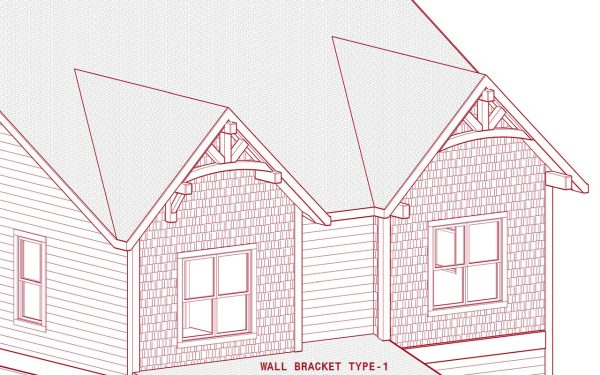

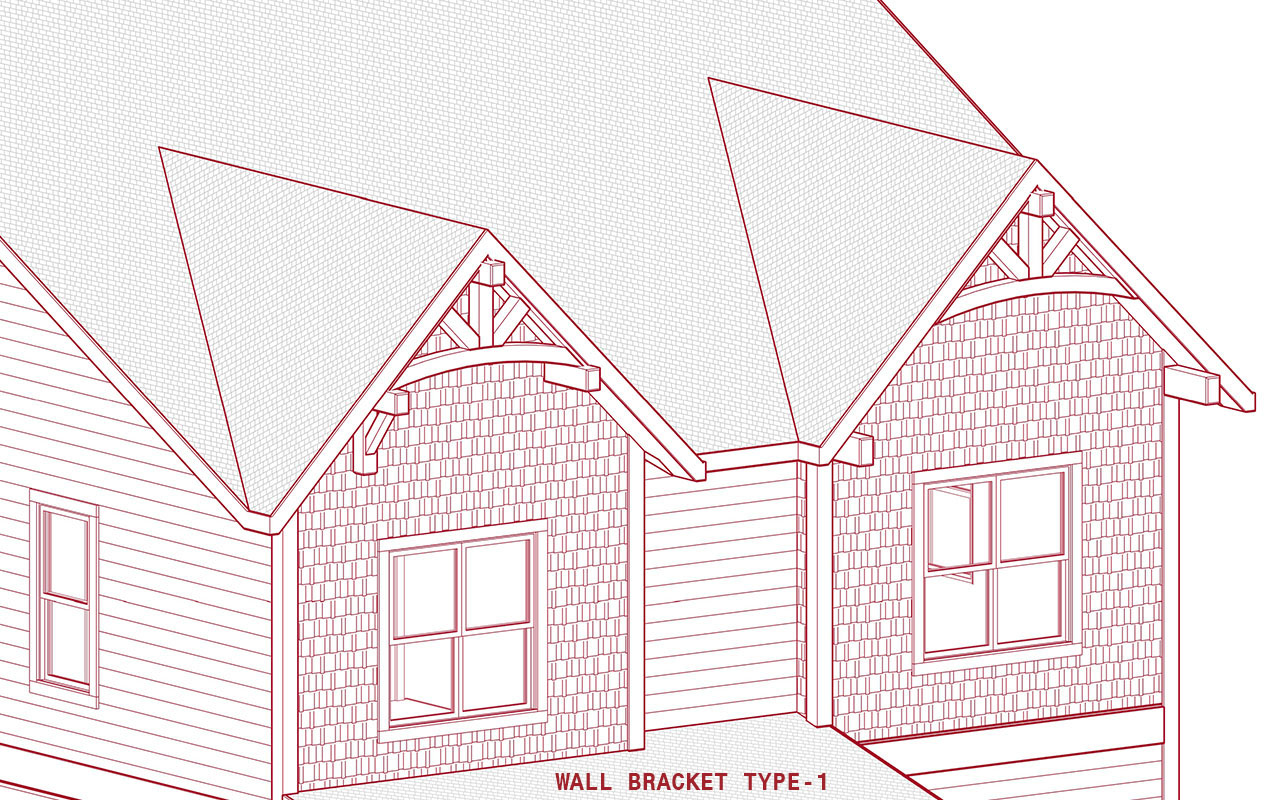

• (1) Wall Bracket – Generic Model Face Based Revit Family

Family Features:

• 100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.
• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.
• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.

Version Log:

Version 1 –

• Gable & Wall Bracket Family Creation
