Gable Bracket 3 – Parametric Revit Family

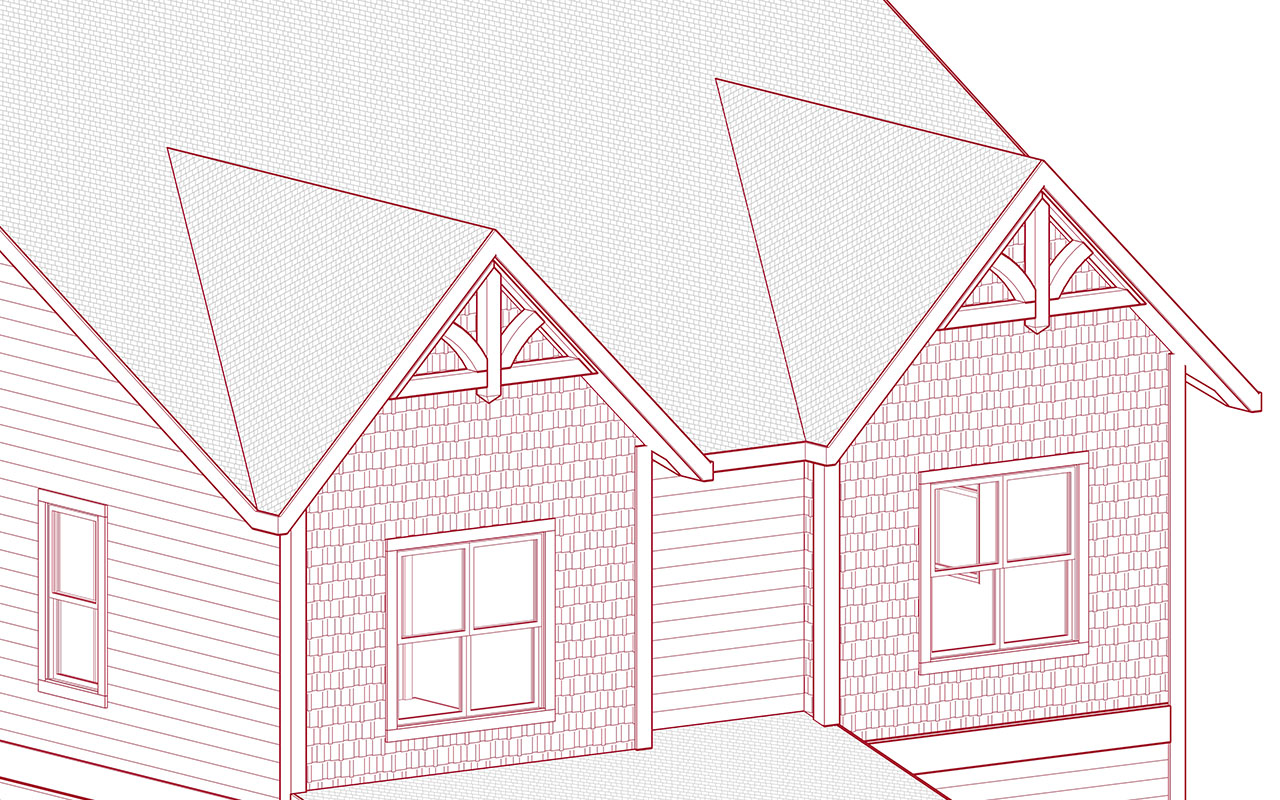

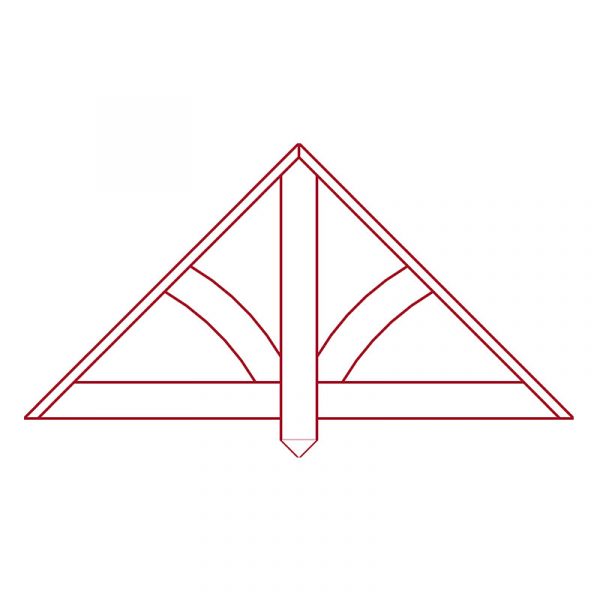

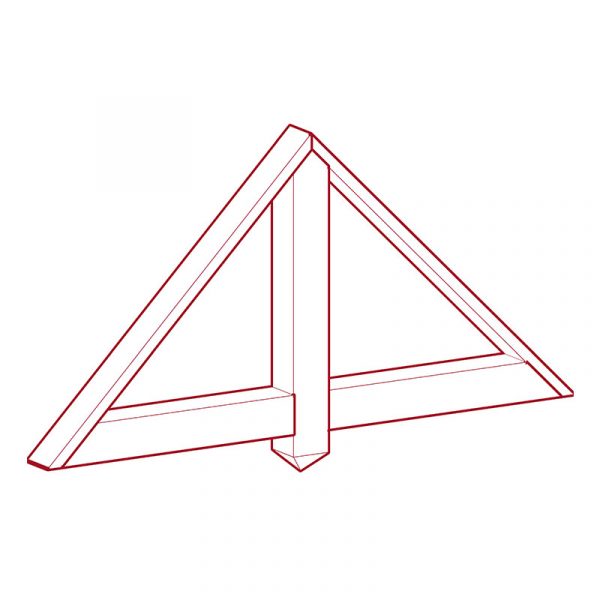

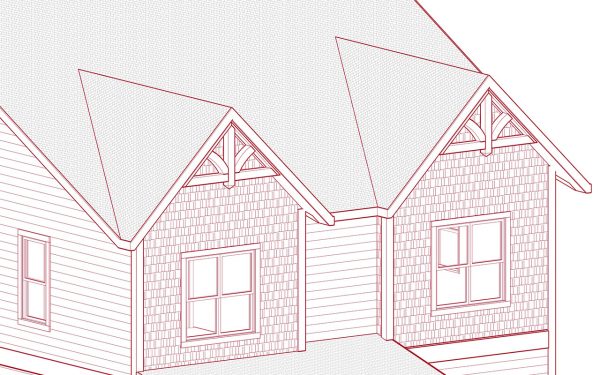

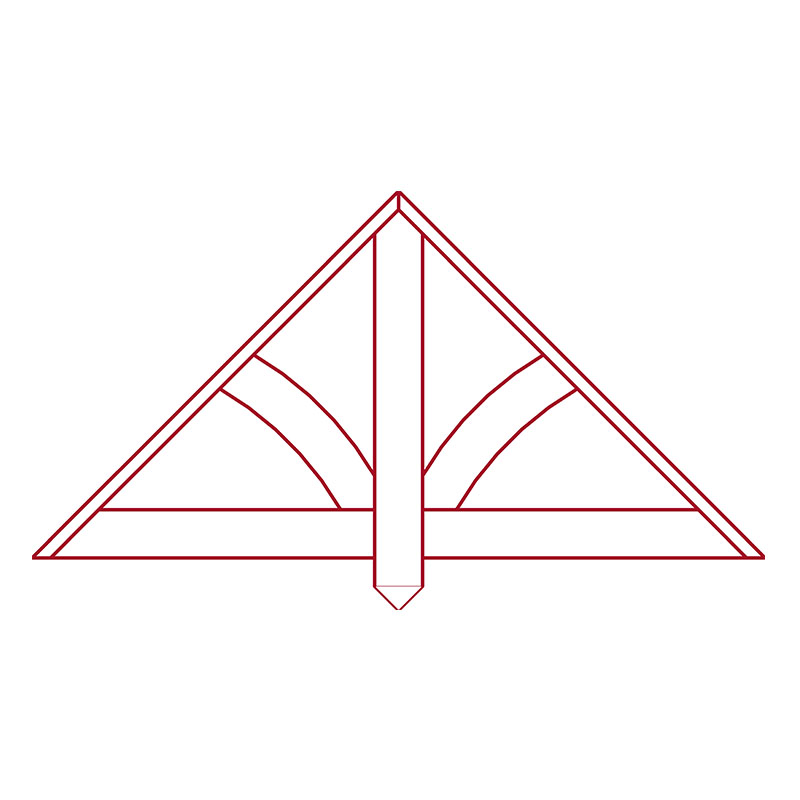

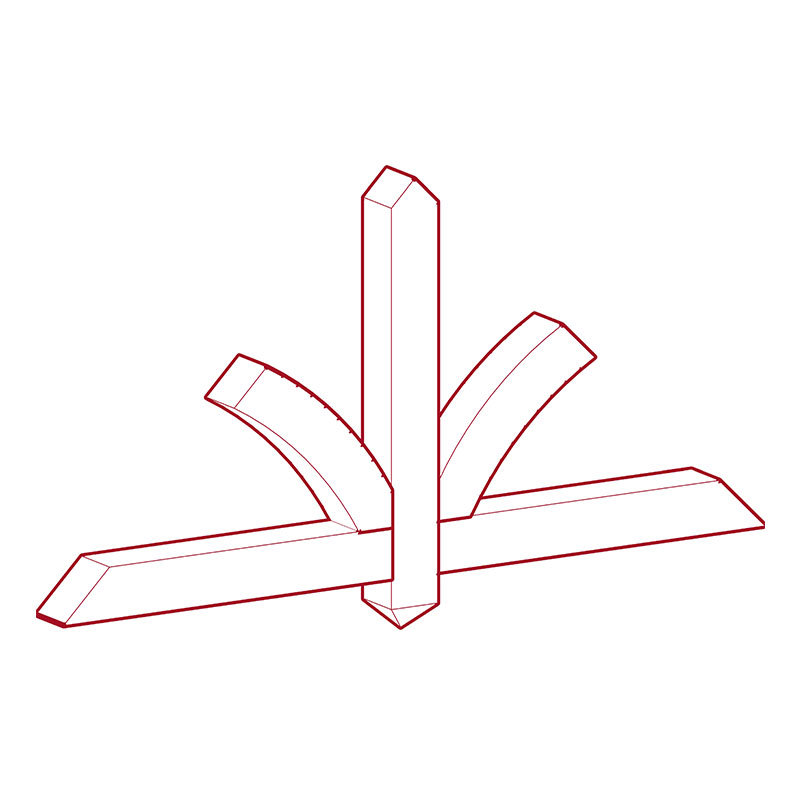

This single Gable Bracket Revit Family can create all the different versions you will need for your next project. Consistent graphics all across the views! Make it complete with our Free Wall Bracket! Check the below video to see family in action:

See additional information section for more details.

Family Parameters:

• Adjust gable bracket slope angle per roof slope

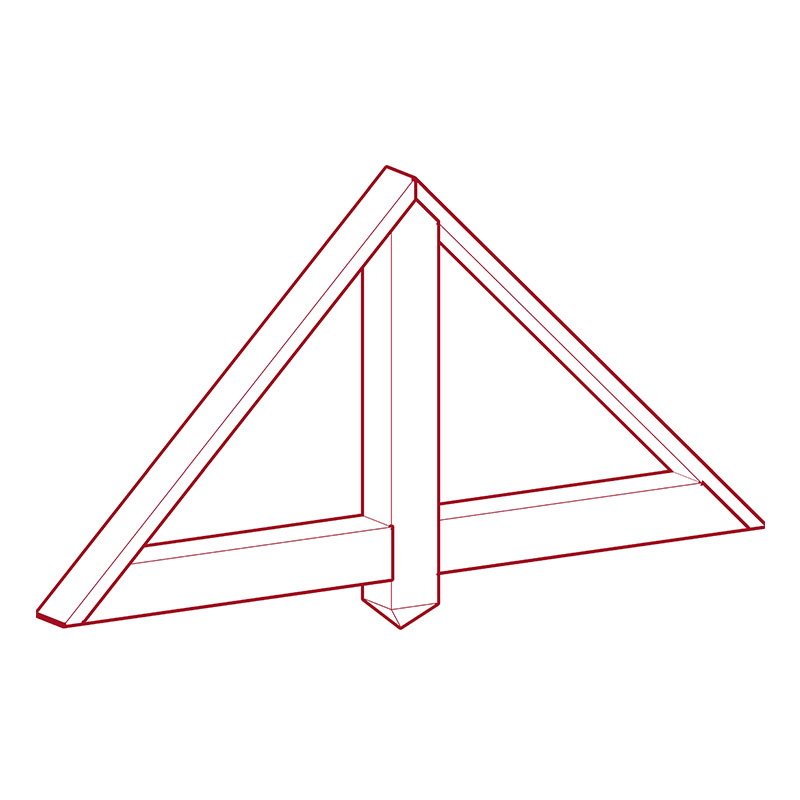

• Show/Hide – Angled Board and Mounting bracket
• Bracket offset from Wall
• Bracket overall Height & width
• Bracket Board width and depth
• Adjust Angled Beam angle
• Gable Bracket Material

Files included with Purchase:

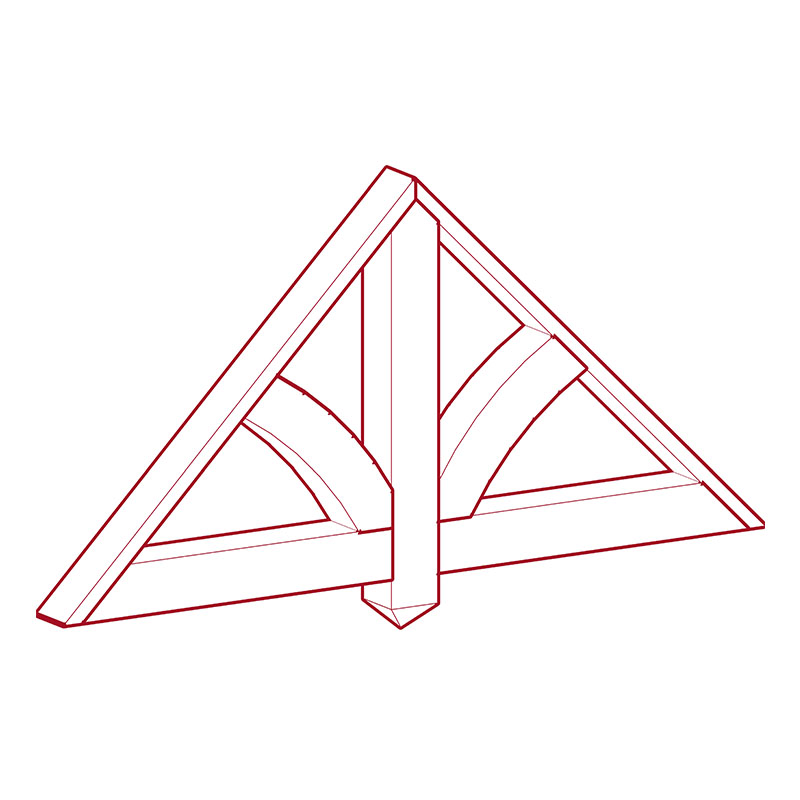

• Gable Bracket – Generic Model Face Based Revit Family

Family Features:

• 100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.
• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.
• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.

Version Log:

Version 1 –

• Gable Family Creation
