Chainlink Fence – Parametric Revit Family Collection

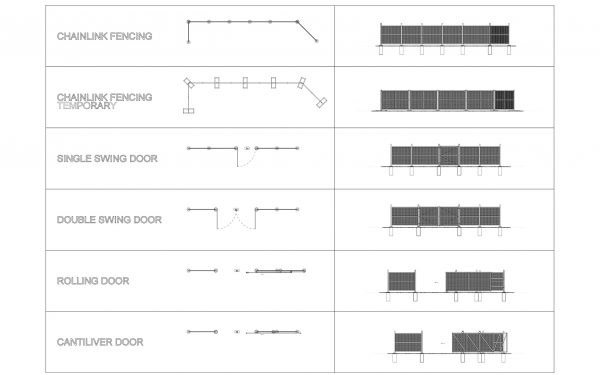

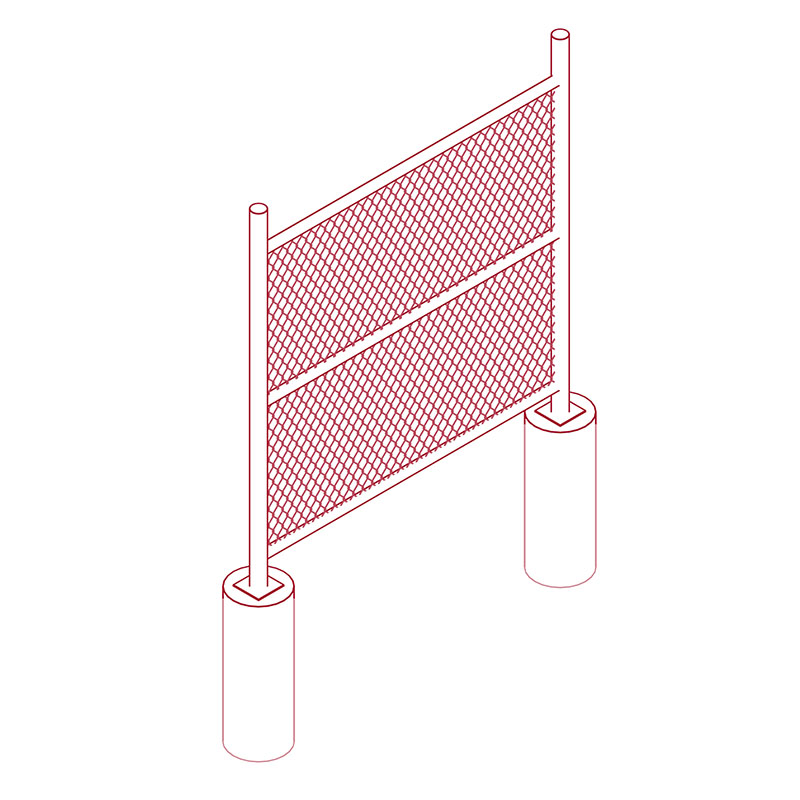

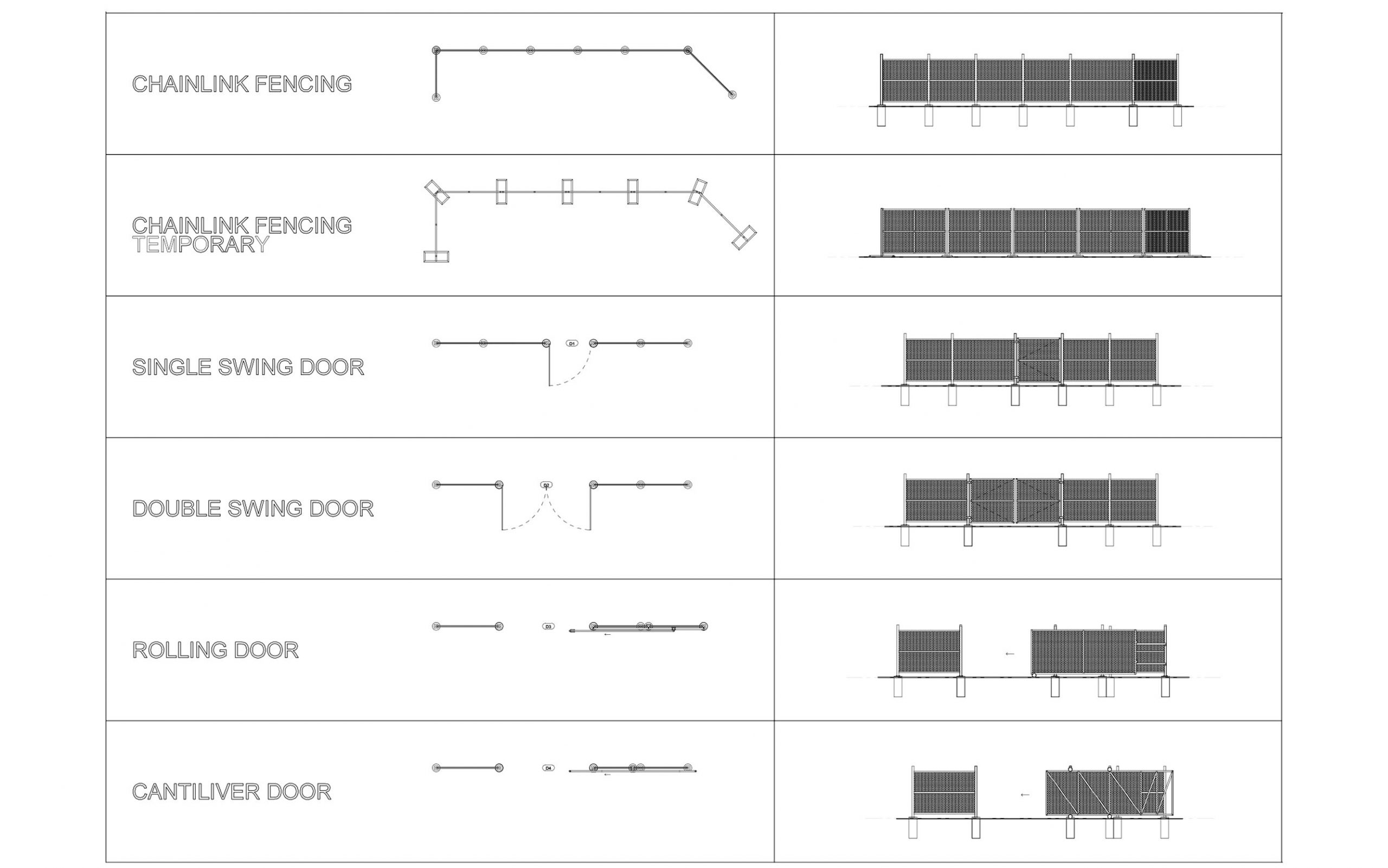

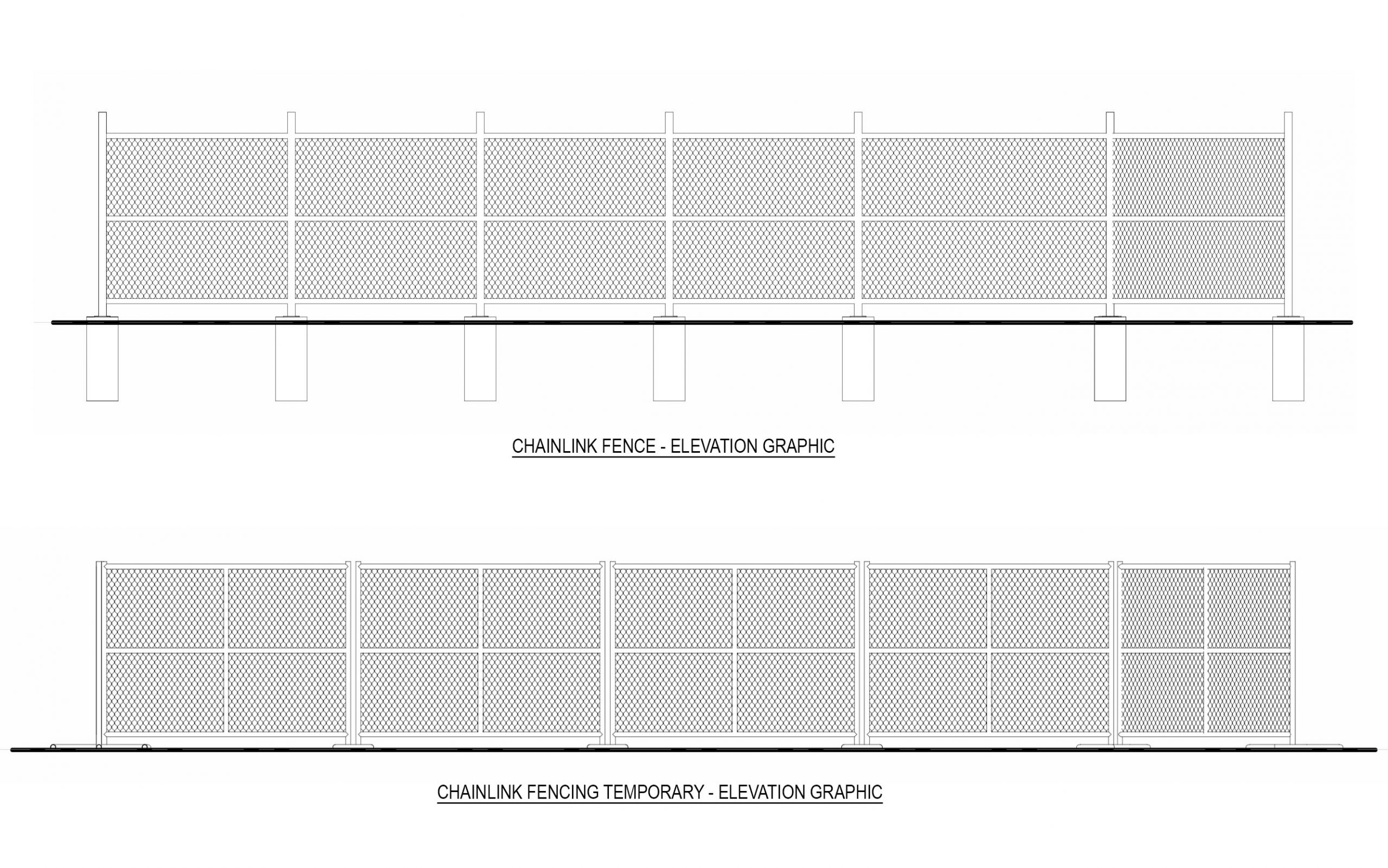

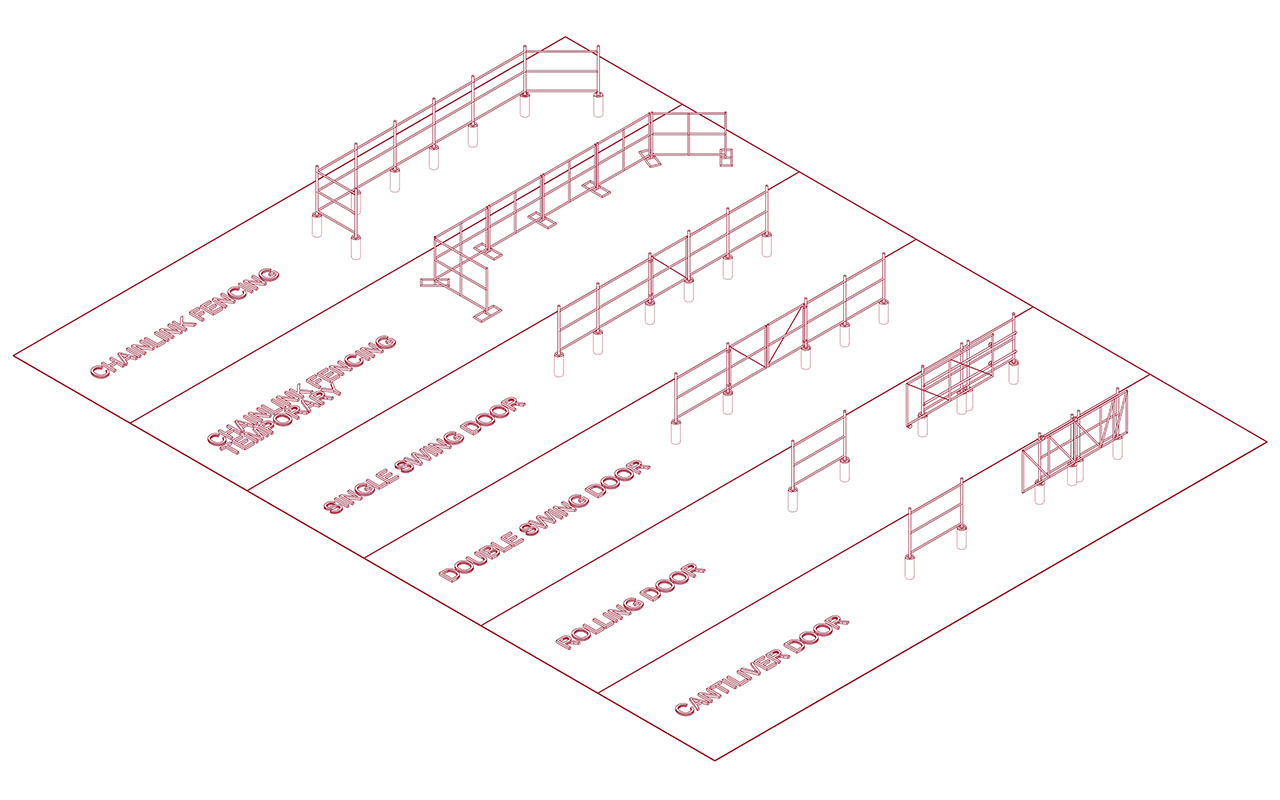

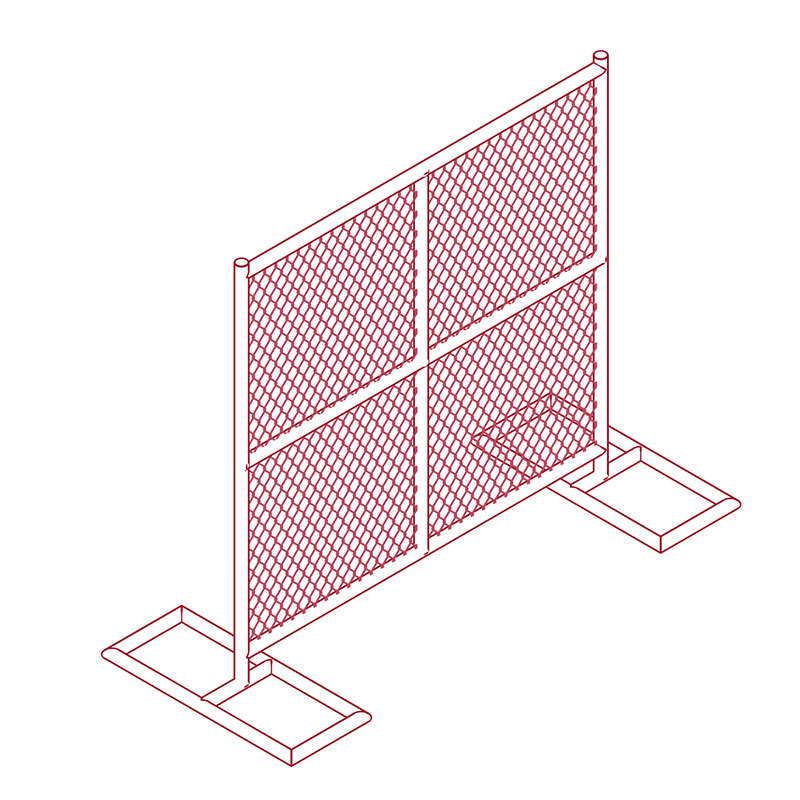

This parametric Chainlink Fencing Revit Family can create all the different versions of 2D & 3D versions that you will need for your next project, helping avoid common coordination errors. It can draw two different versions – Permanant Chainlink Fencing with optional footing/baseplate and Temporary Chainlink Fencing with base.

This family collection is based on the Revit curtain wall panel category. So, it can act like revit wall with room bounding properties if selected to generate room areas. All gates are Revit curtain door category so they can be scheduled like normal doors.

Check the below video to see families in action:

See additional information section for more details.

Family Parameters:

• Revit Curtain wall panel based family
• Show/Hide – First, Last Post, Footing/Baseplate, Middle rail, Bottom rail

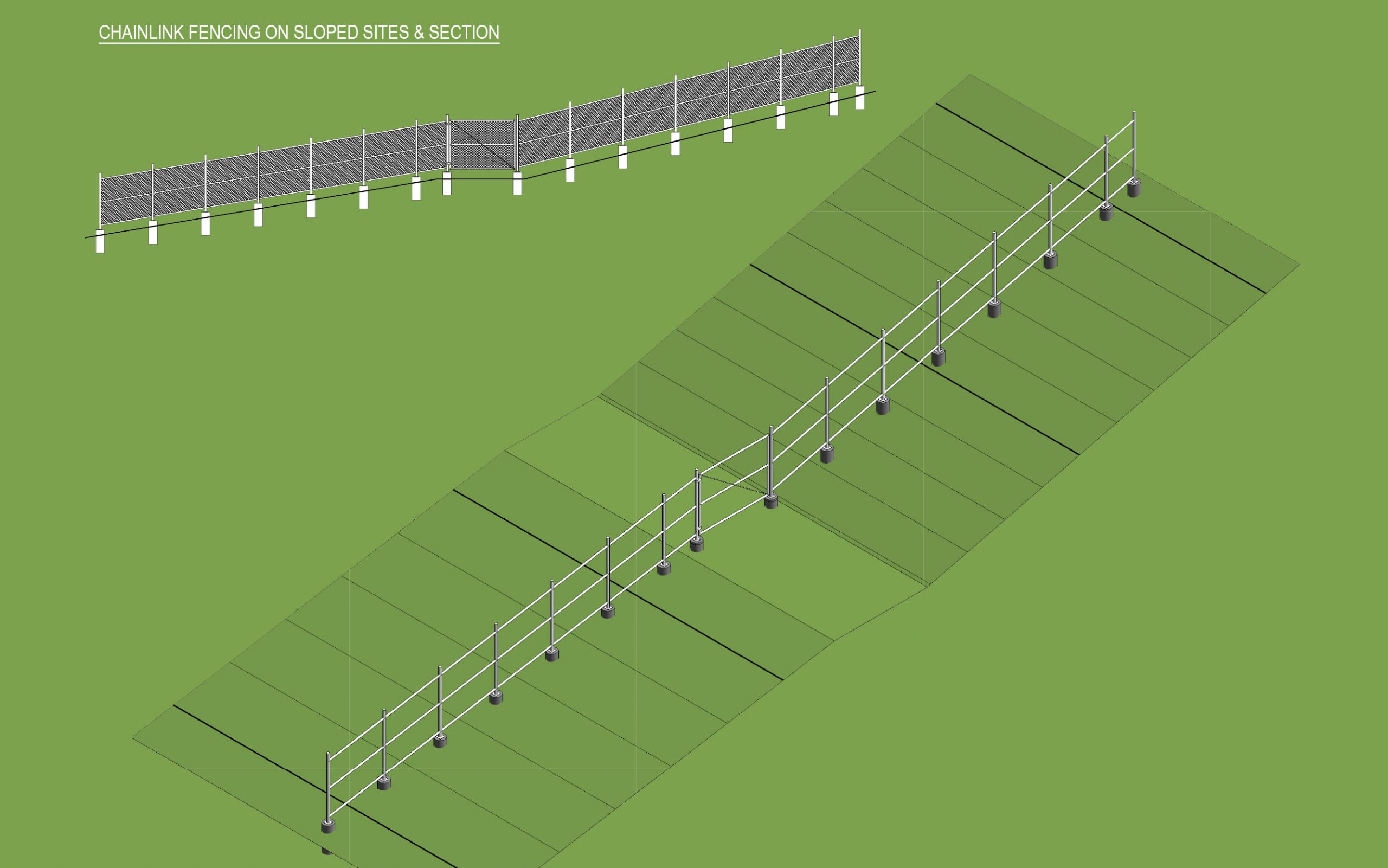

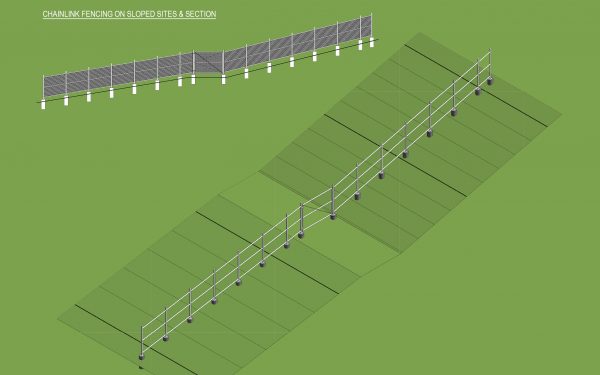

• Parameter to adjust Fence Slope to match with the grades
• Consistent graphic across all views
• Adjust Fence Width, Length, post/rail diameters, Angle, Material, etc. on the go

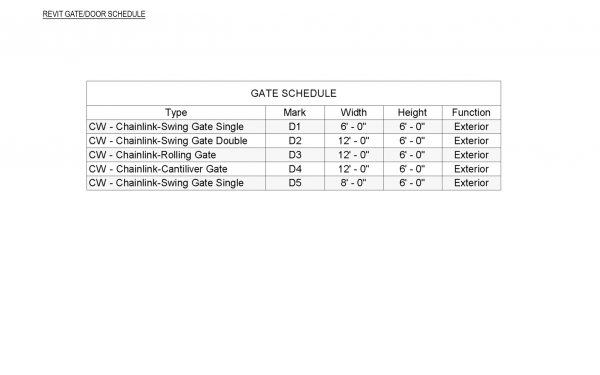

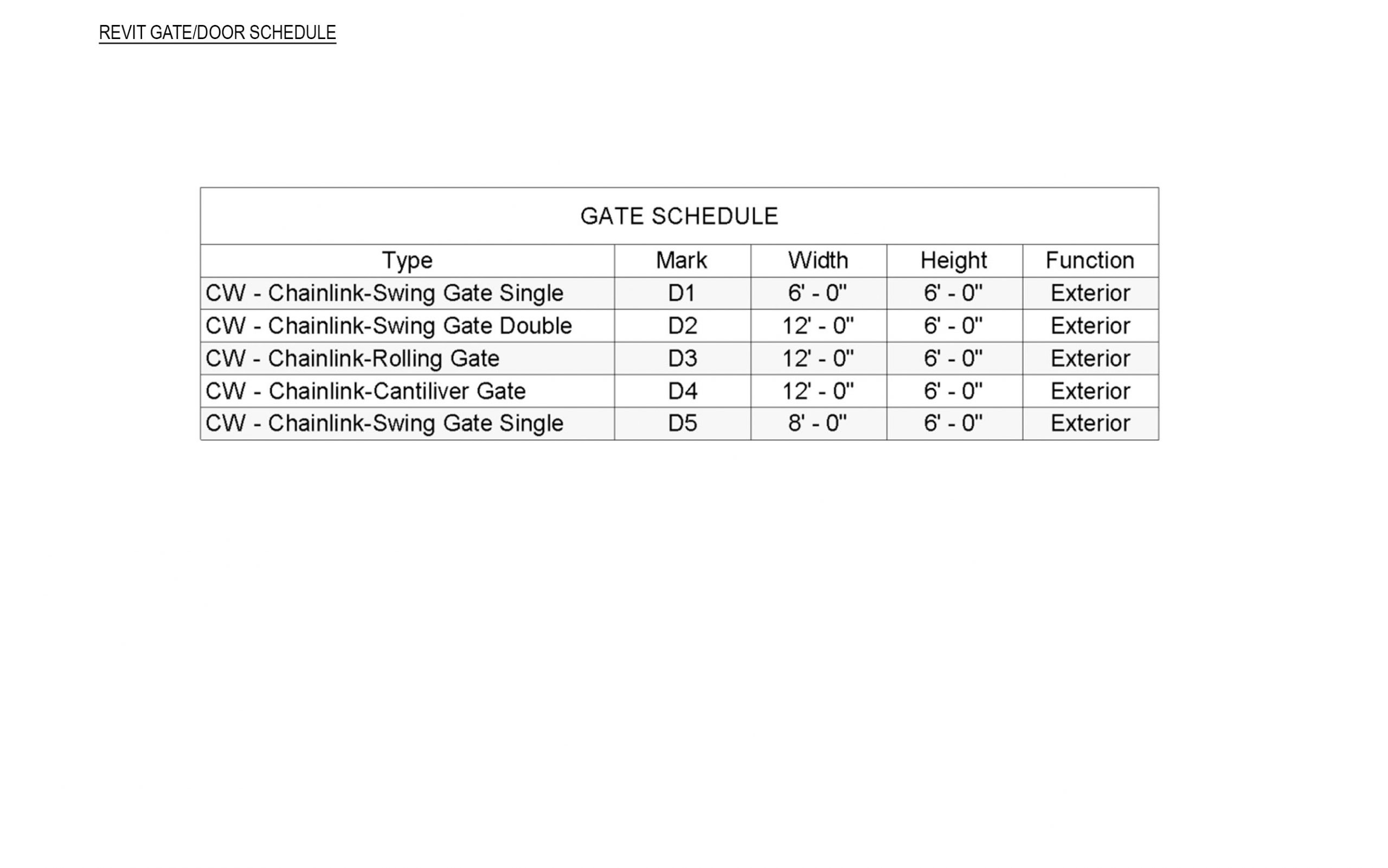

• Calculate Room area within closed fencing layout, Door Schedule, Curtain wall schedule
• Single Revit Family creates all different Fencing styles

Files included with Purchase:

• Chainlink Permanant type Revit Family
• Chainlink Temporary type Revit Family

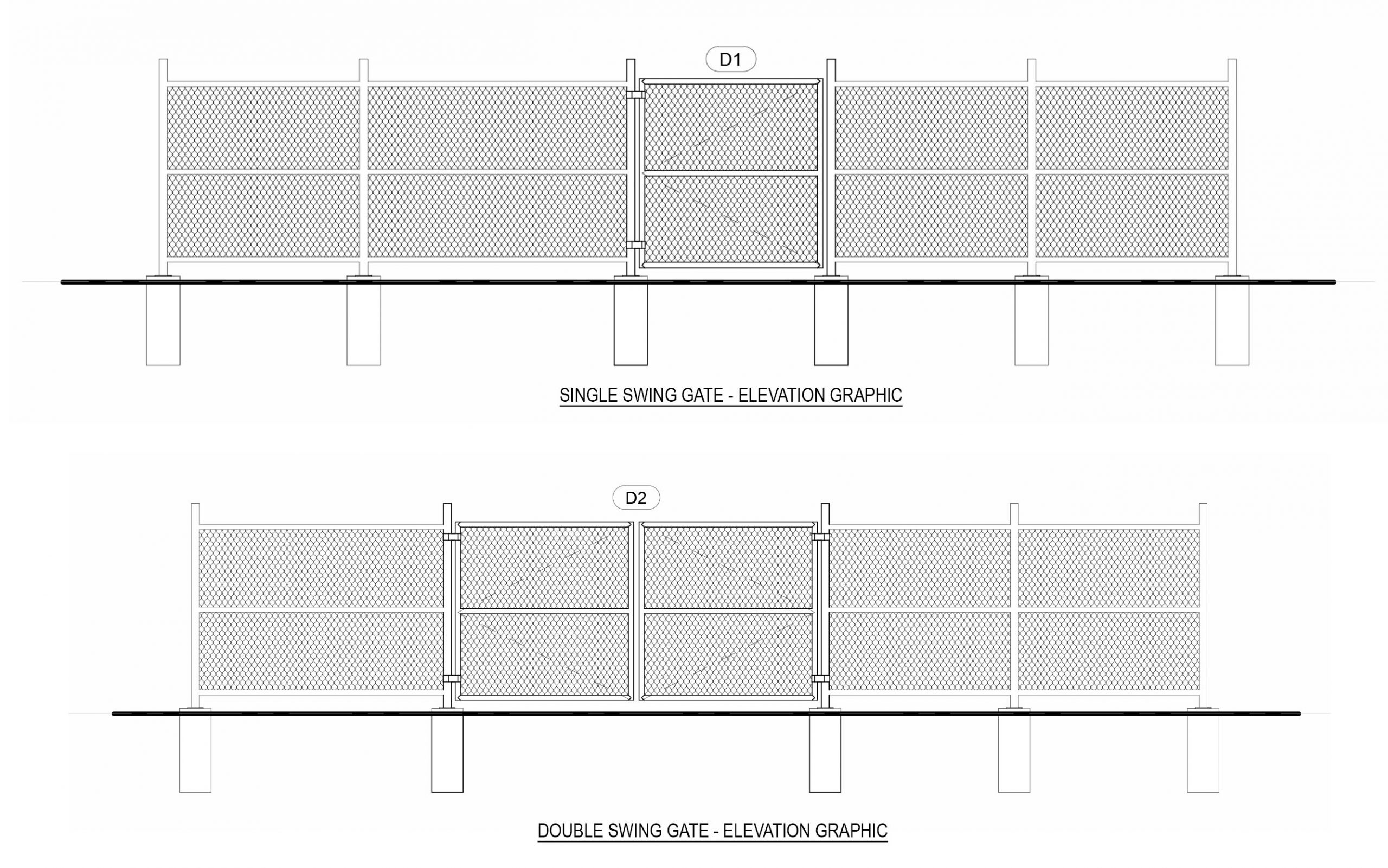

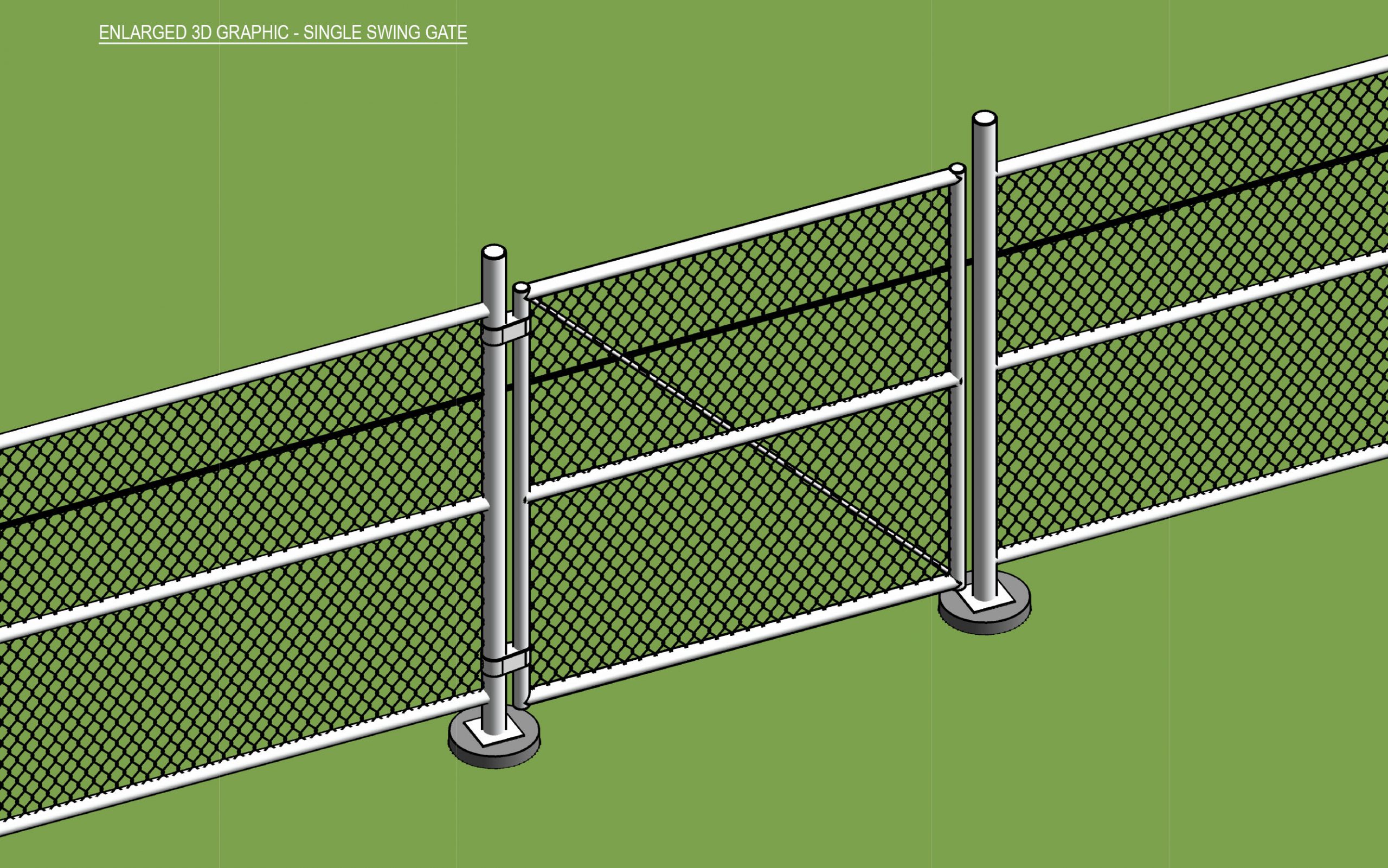

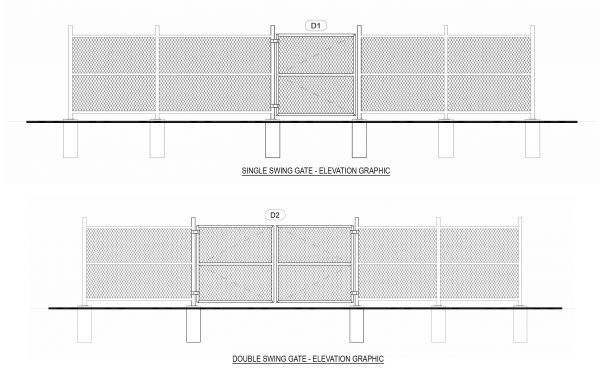

• Chainlink-Single Swing Gate Revit Family
• Chainlink-Double Swing Gate Revit Family

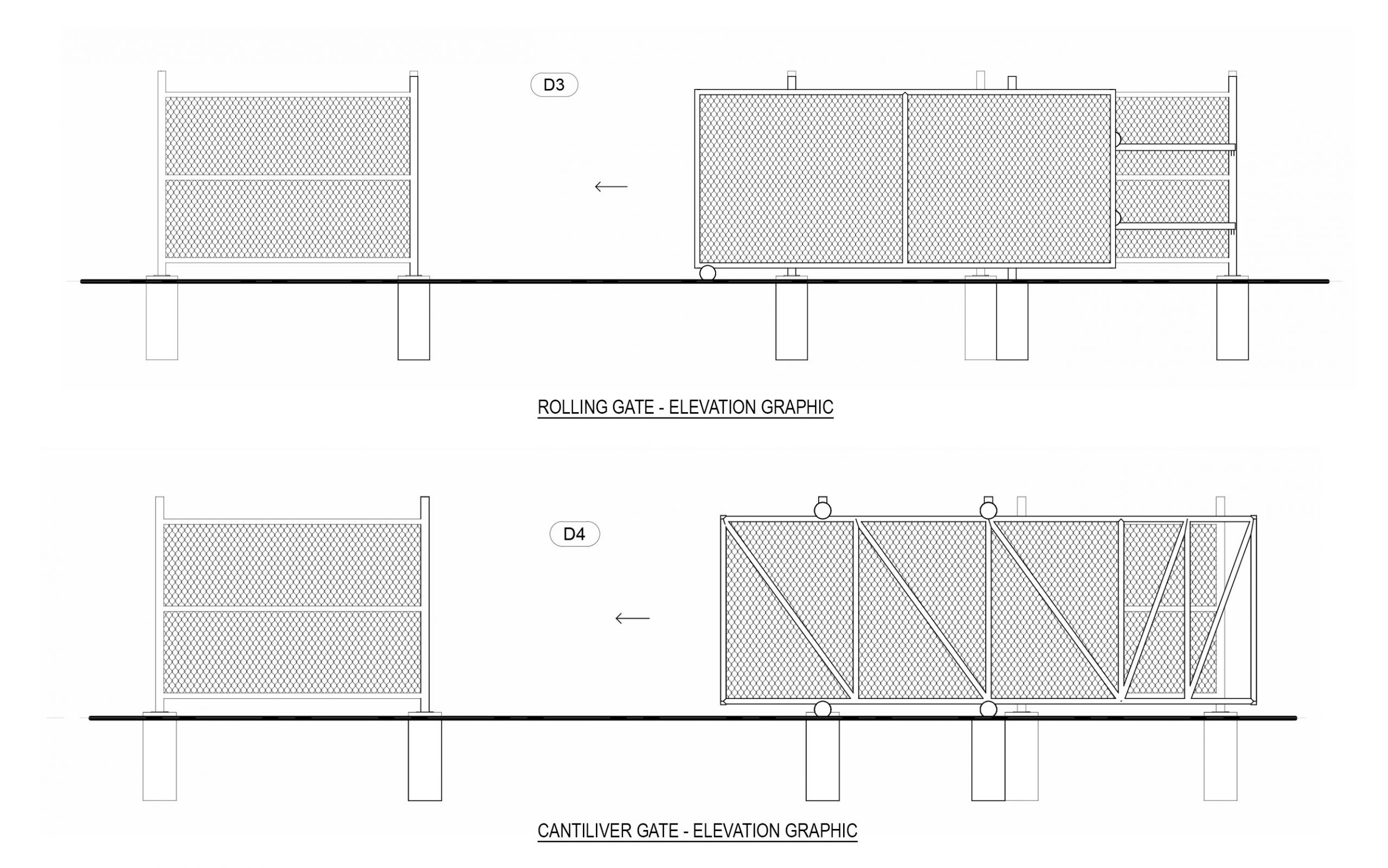

• Chainlink-Rolling Gate Revit Family
• Chainlink-Cantiliver Gate Revit Family
• Example Revit Project

Family Features:

• 100% Parametric: Ready-to-use fully parametric built inside the Revit family environment.
• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.

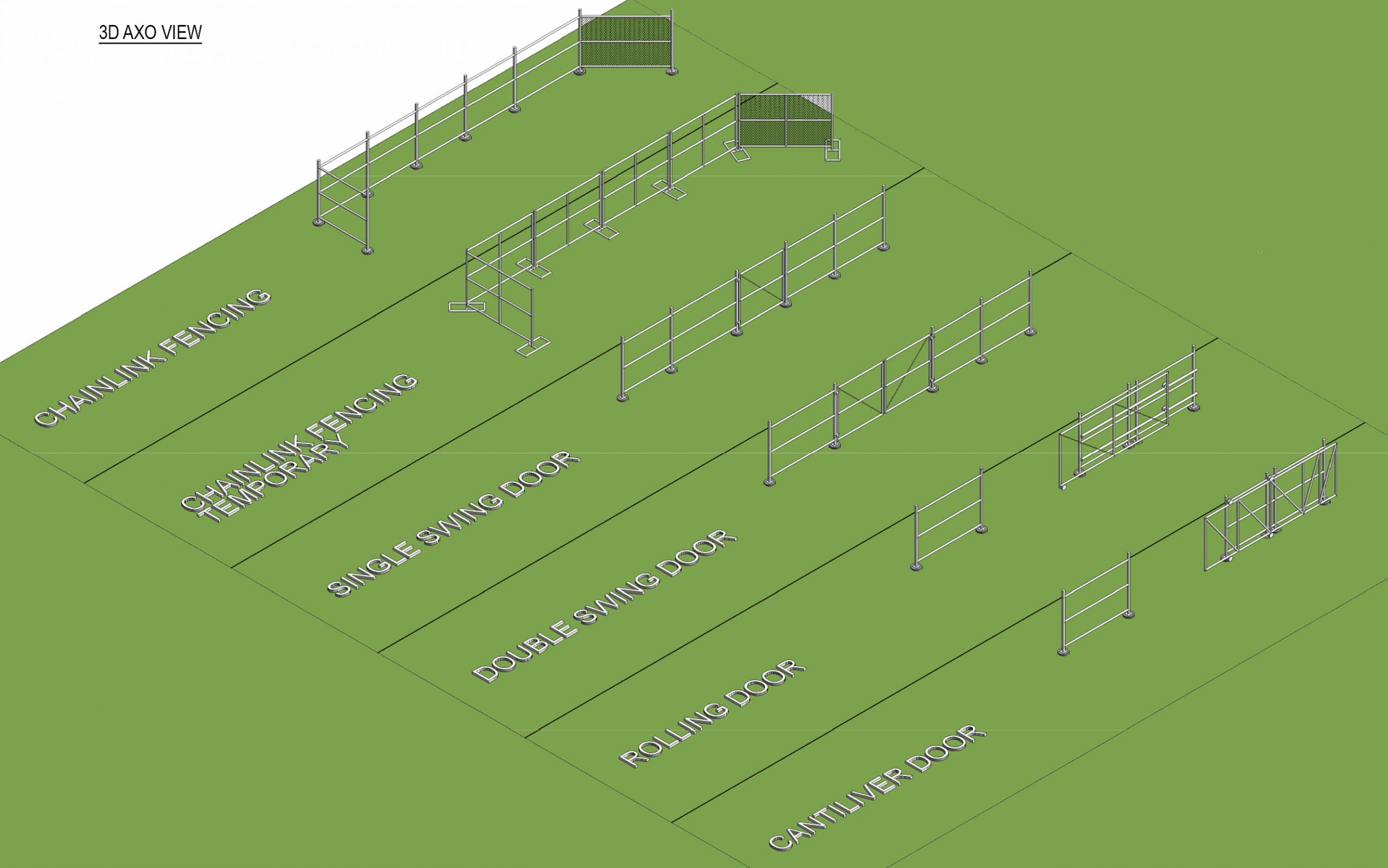

• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
