2010- 2017 ICC ADA Clearance – Parametric Revit Family Collection

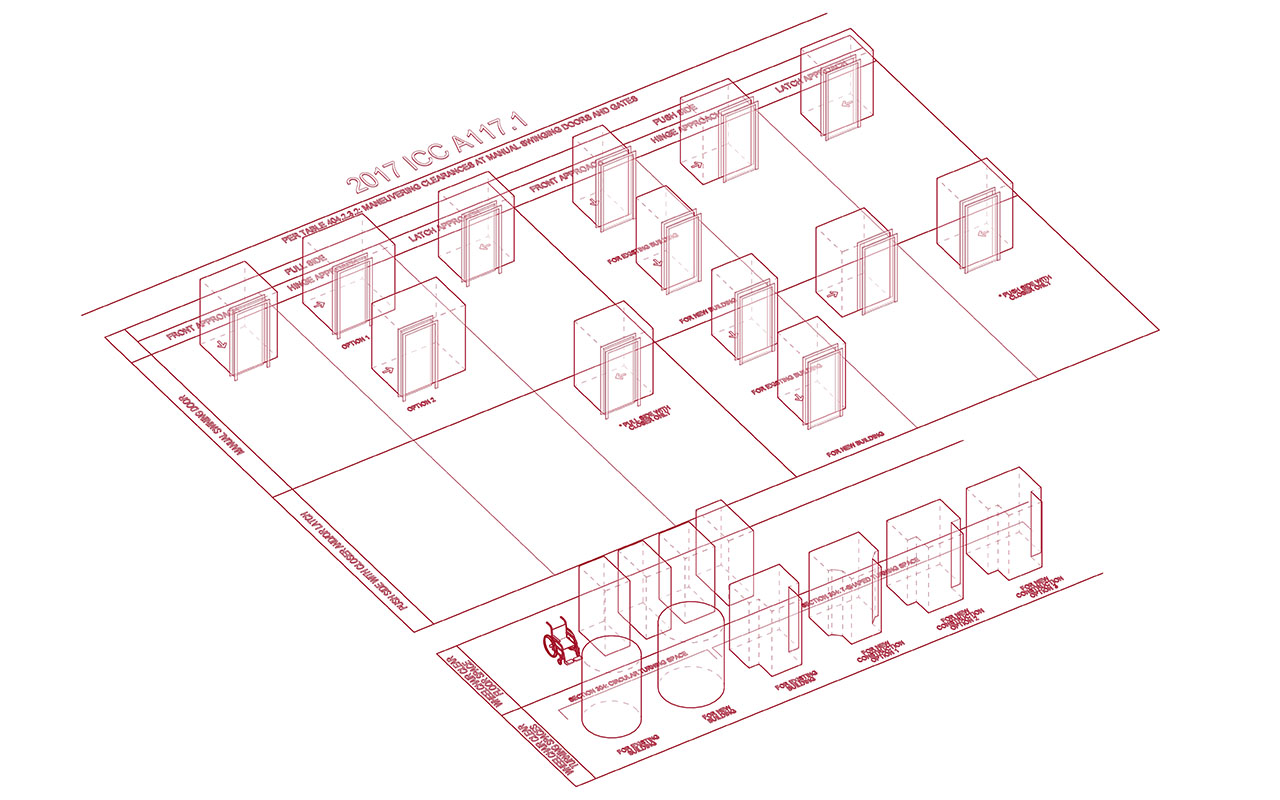

This Collection includes the 2017 ICC A117.1 ADA Clearance fully parametric families you will need for your next project. Full Control over your graphics and minimize the project coordination conflicts with prebuilt 3D clearance boxes around them for accuracy. It also includes annotation showing live Clearance box dimensions to avoid errors in the drawings.

While these could possibly be used for both 2010 ADA and 2017 ADA version too, but these families are specifically created by keeping 2017 version in mind. You are free to modify these families to make them comply with 2010 if needed.

See additional information section for more details.

• Adjust 3D Clearance Box Width, Depth & Height
• Show/Hide – 3D Clearance Box, 2D Wheelchair Detail item, Knee & Toe Overlap, Live Clearance Box Size Annotation
• Clearance Box Material

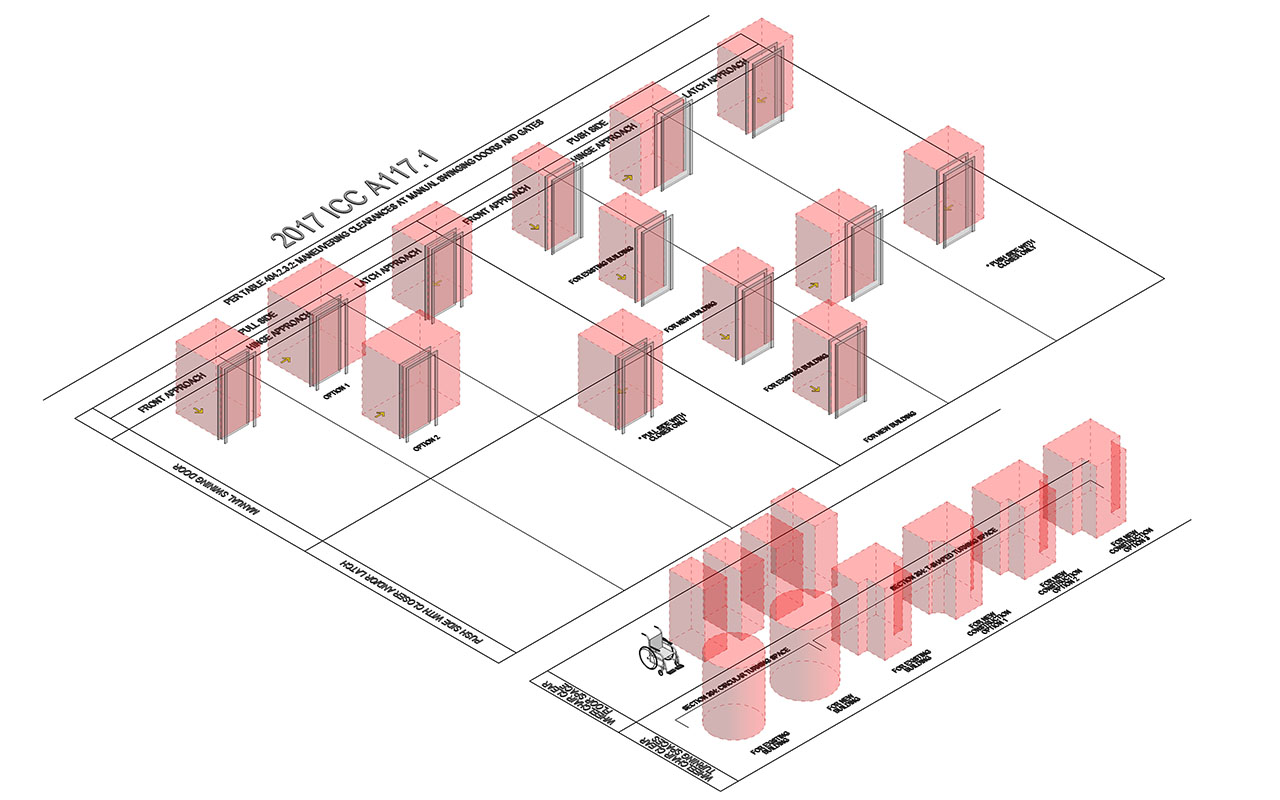

• Pre-built Door Maneuvering Blocks with correct labels to choose from for your next door condition

Files included with Purchase:

• ADA Wheelchair – Revit 2D Detail Item Family
• ADA Wheelchair – Revit 3D Family

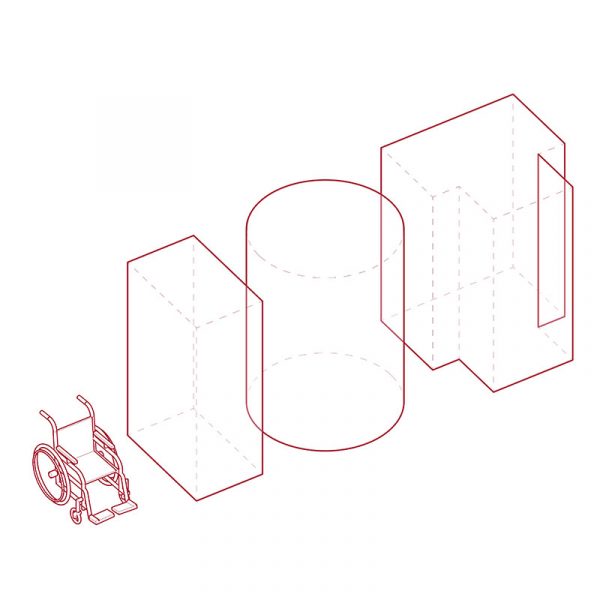

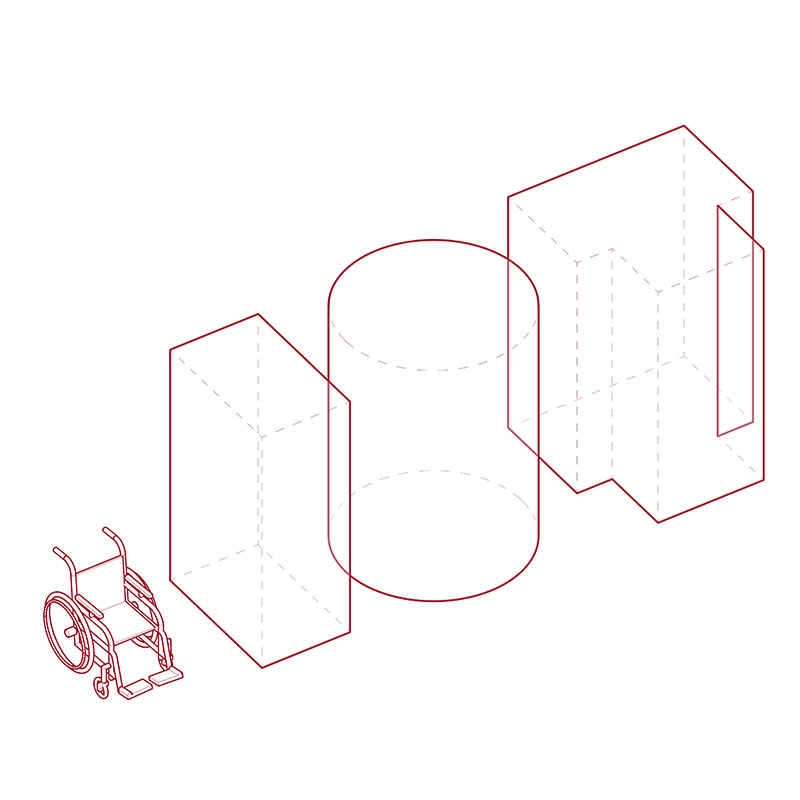

• ADA Wheelchair Clearance – Revit Family

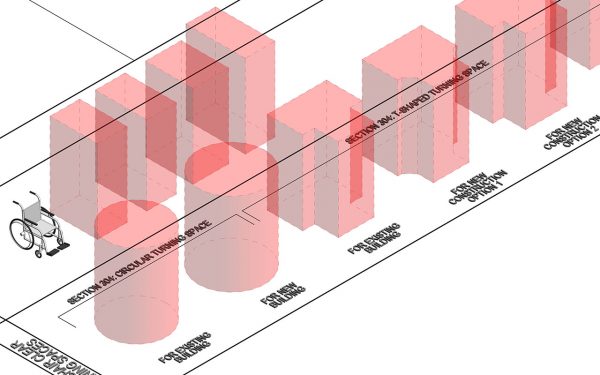

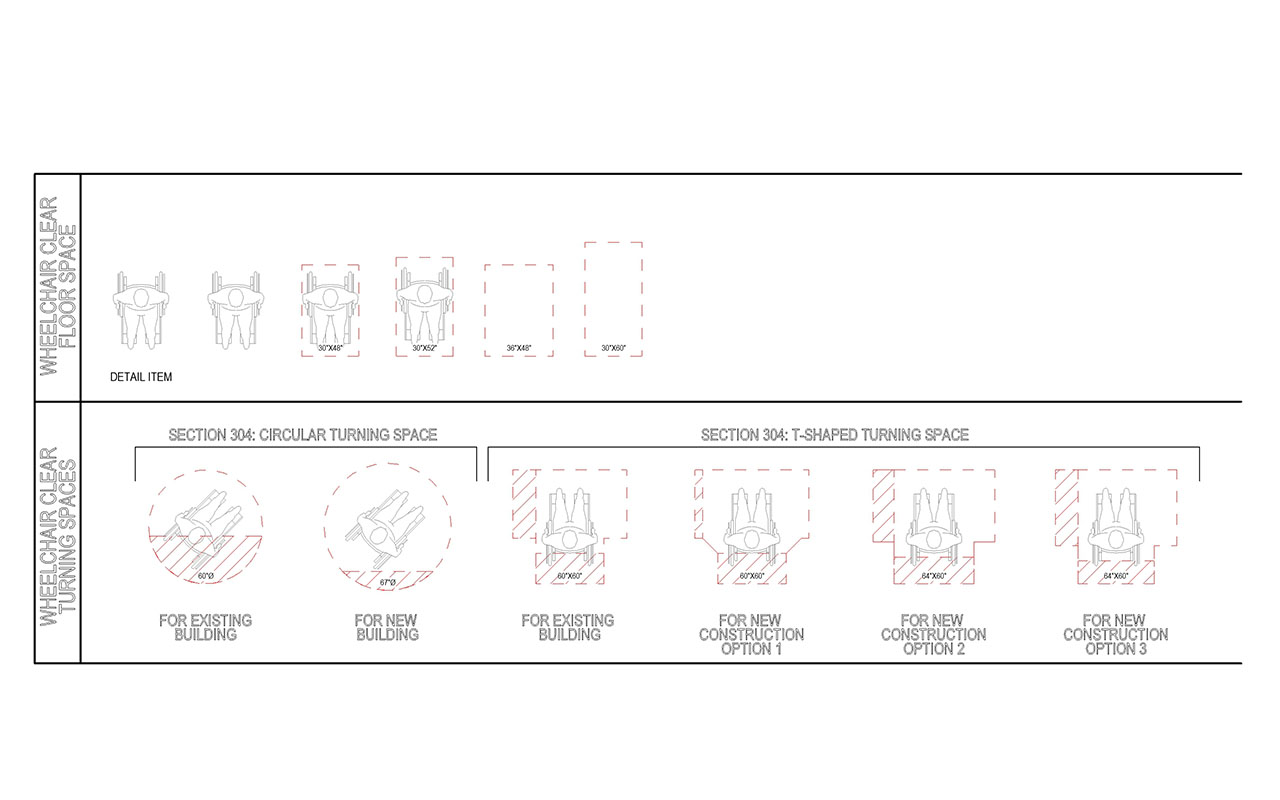

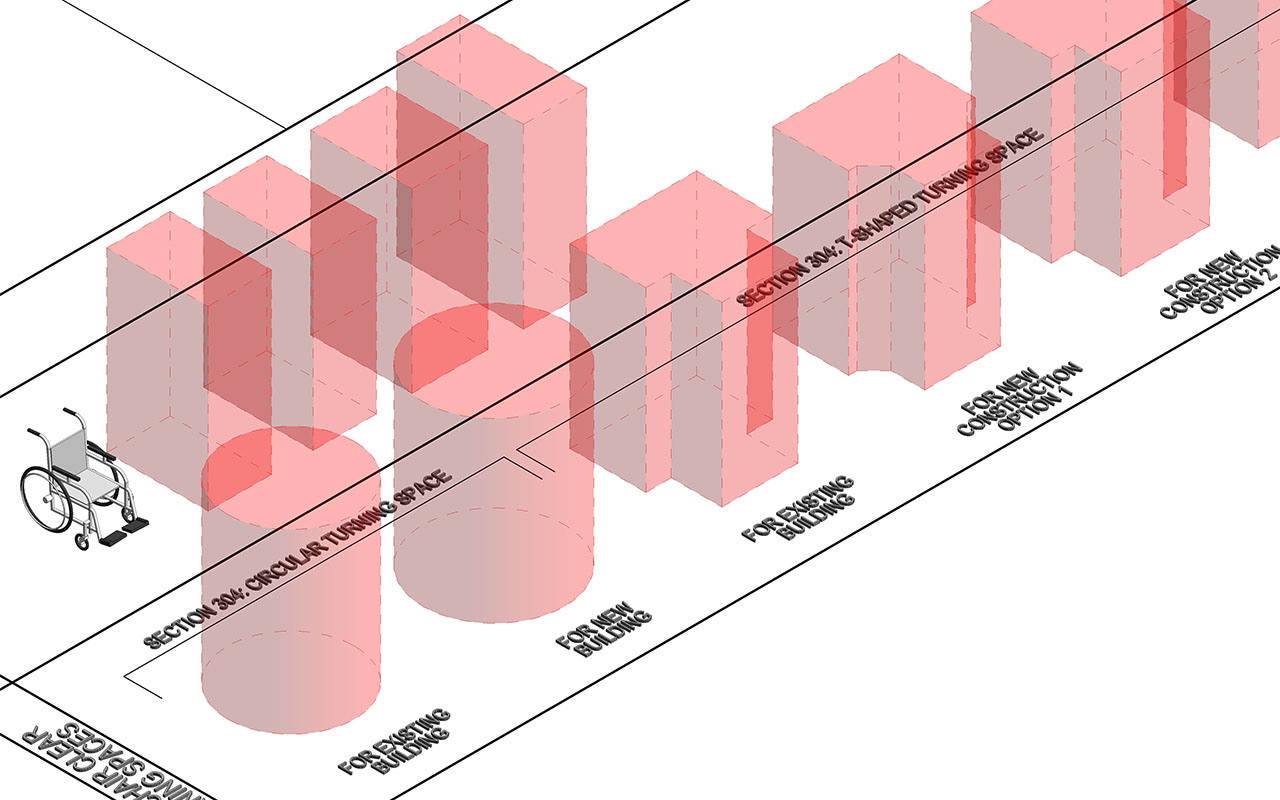

• ADA Turning space – Circular – Revit Family
• ADA Turning space – T-Shape – Revit Family

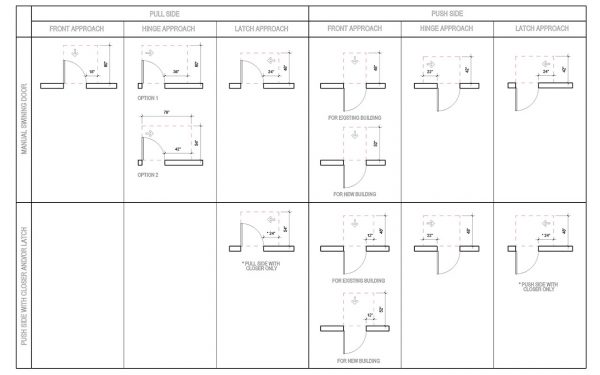

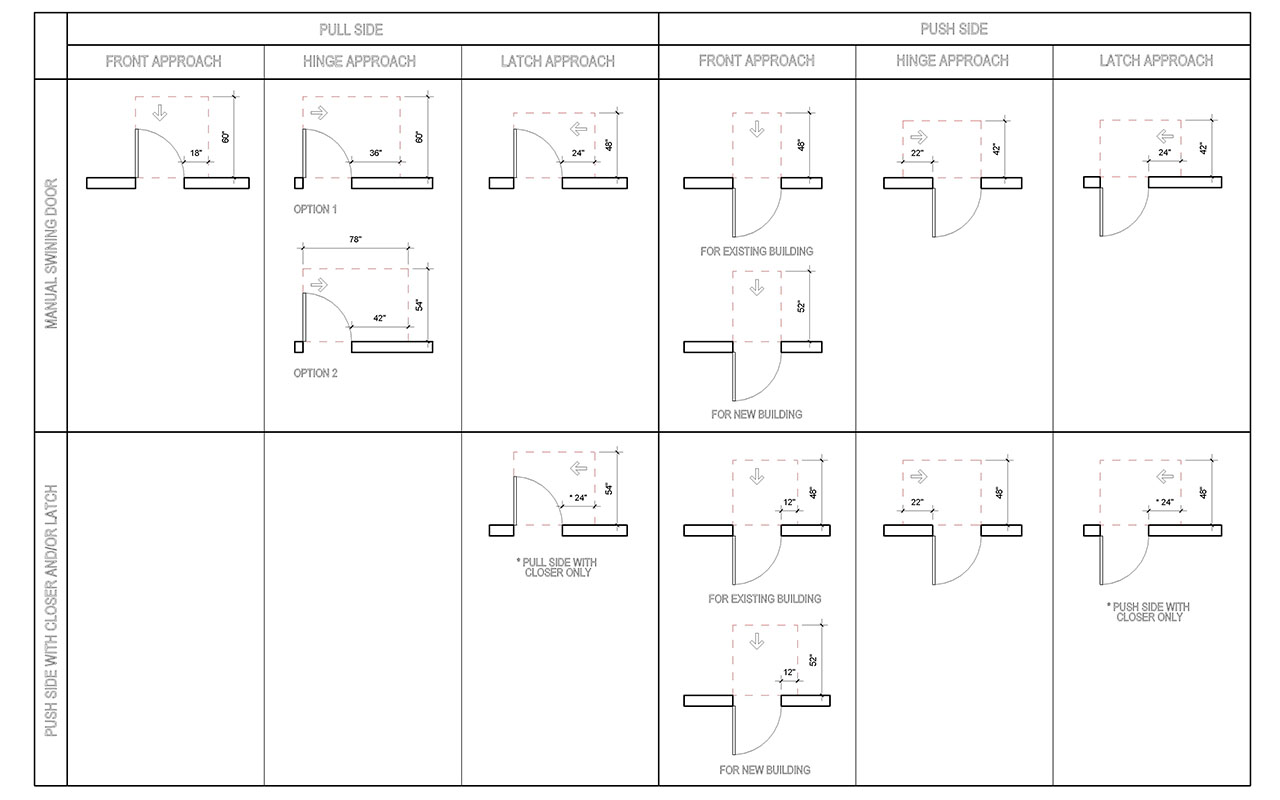

• ADA Door Maneuvering – Revit Family
• ADA Example Project – Revit Project

Disclaimer: While we strive to uphold the highest standards of accuracy in ensuring that all dimensions and parameters align with the intent of the ADA code, we cannot be held responsible for any defects or damages arising from the use of these families in your drawings or projects. Our intent is to provide a generic base for your work; however, it remains your responsibility to verify that all dimensions and clearances comply with the relevant codes and standards.

Family Features:

• 100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.
• Full Customization: Single Family creates all different listed types & more.
• Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.
• Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.
• Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D
• Consistent around Phases: Use the same family from preliminary through the construction documentation
• Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.

Version Log:

Version 1 –

• ADA Clearance Box Family Collection Creation
